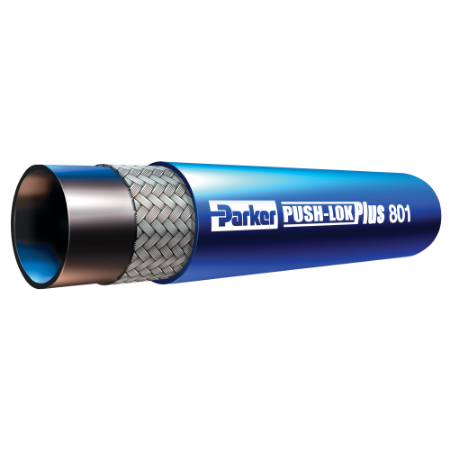

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s 801 general-purpose hose with Push-Lok Plus technology is a low-pressure, multipurpose synthetic rubber hose featuring Parker’s exclusive color-coding system. Suitable for use with a wide range of media, 801 hoses are compatible with petroleum-based hydraulic fluid and lubricating oils, pneumatic power, antifreeze, and, when coupled with HY Series fittings, diesel fuel. This versatile hose features the unique Push-Lok seal for easy assembly and to ensure reliable, durable, and leak-free service. Available in sizes ranging from ¼-inch to 1-inch in diameter, 801 hoses offer maximum working pressures ranging from 200 to 350 psi. The exclusive color-coding system enhances organization and assembly. Common uses include construction, utilities, machine tooling, ground support, industrial, and automotive applications.
Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive
Features/Benefits:
• 200-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• In applications where a number of hoses lines carry different media, Push-Lok color-codes reduce timely "tracing" of lines, preventing disconnection of the wrong line and unnecessary, costly downtime
• Unique seal for a durable leak-free service
Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
• Diesel fuel – approved only when coupled with HY series fittings
Compatible Fittings:
• 82 series fittings
• HY series fittings
| Action | Part No. | Availability | Partner Available | Price | UOM | Weight | Maximum Operating Pressure | Outside Diameter | Inside Diameter | Nominal Hose Inside Diameter | Cover Material | Application | Minimum Operating Temperature | Minimum Bend Radius | Specifications Met | Hose Reinforcement Material | Hose Inner Tube Material | Media | Compatible Fitting | Size | Design Factor | Division | Vacuum Pressure Rating | Maximum Operating Temperature | Hose I.D. (size) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 801-10-BLK-RL | 852 In Stock | 11968 In Stock | $5.97/foot | FT | 0.19 lb/ft | 2.1 MPa | 23 mm | 16 mm | 16 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 6 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -10 | 4:1 | Hose Products Division | 15 Inch-Hg | 185 °F (Water) | -10 | Black | |
| 801-10-BLU-RL | 545 In Stock | 7887 In Stock | $5.97/foot | FT | 0.19 lb/ft | 300 psi | 23 mm | 16 mm | 16 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °C (Oil) | 150 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -10 | 4:1 | Hose Products Division | 381 mm-Hg | 70 °C (Air) | -10 | Blue | |
| 801-10-GRA-RL | 484 In Stock | 3828 In Stock | $5.97/foot | FT | 0.28 kg/m | 300 psi | 23 mm | 5/8 inch | 16 mm | MSHA Approved | Lubricating Oils | -40 °C (Oil) | 150 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | HY Series | -10 | 4:1 | Hose Products Division | 381 mm-Hg | 257 °F (Oil) | -10 | Gray | |
| 801-12-BLK-RL | 2203 In Stock | 12174 In Stock | $7.44/foot | FT | 0.24 lb/ft | 2.1 MPa | 26.2 mm | 19 mm | 19 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 180 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 70 °C (Air) | -12 | Black | |
| 801-12-BLU-RL | 2530 In Stock | 17293 In Stock | $7.44/foot | FT | 0.36 kg/m | 2.1 MPa | 1.030 inch | 19 mm | 19 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 7 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 85 °C (Water) | -12 | Blue | |
| 801-12-GRA-RL | 1205 In Stock | 4782 In Stock | $7.44/foot | FT | 0.36 kg/m | 2.1 MPa | 26.2 mm | 3/4 inch | 19 mm | MSHA Approved | Lubricating Oils | -40 °F (Oil) | 180 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 85 °C (Water) | -12 | Gray | |
| 801-12-GRN | Quote Required | 360 In Stock | $5.84/each | EA | 0.36 kg/m | 300 psi | 1.030 inch | 3/4 inch | 19 mm | MSHA Approved | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 180 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | HY Series | -12 | 4:1 | Hose Products Division | 15 Inch-Hg | 125 °C (Oil) | -12 | Green | |
| 801-12-YEL | Quote Required | 241 In Stock | $5.84/each | EA | 0.36 kg/m | 300 psi | 1.030 inch | 19 mm | 19 mm | MSHA Approved | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 7 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | 82 Series | -12 | 4:1 | Hose Products Division | 15 Inch-Hg | 185 °F (Water) | -12 | Yellow | |
| 801-16-BLK-RL | 1295 In Stock | 5609 In Stock | $9.85/foot | FT | 0.55 kg/m | 200 psi | 1.280 inch | 1 inch | 25 mm | Synthetic Rubber | Antifreeze Solutions | -40 °C (Oil) | 250 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | HY Series | -16 | 4:1 | Hose Products Division | 15 Inch-Hg | 158 °F (Air) | -16 | Black | |
| 801-16-BLU-RL | 653 In Stock | 2754 In Stock | $9.85/foot | FT | 0.37 lb/ft | 200 psi | 32.6 mm | 25 mm | 25 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 10 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | HY Series | -16 | 4:1 | Hose Products Division | 15 Inch-Hg | 158 °F (Air) | -16 | Blue | |
| 801-16-GRA-RL | 189 In Stock | 3322 In Stock | $9.85/foot | FT | 0.37 lb/ft | 1.4 MPa | 32.6 mm | 25 mm | 25 mm | Synthetic Rubber | Antifreeze Solutions | -40 °F (Oil) | 10 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | HY Series | -16 | 4:1 | Hose Products Division | 381 mm-Hg | 185 °F (Water) | -16 | Gray | |
| 801-4-BLK | Quote Required | 3333 In Stock | $2.33/each | EA | 0.13 kg/m | 2.4 MPa | 12.7 mm | 6.3 mm | 6 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 2-1/2 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | HY Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 70 °C (Air) | -4 | Black | |
| 801-4-BLK-RL | 3711 In Stock | 35516 In Stock | $2.97/foot | FT | 0.13 kg/m | 2.4 MPa | 0.500 inch | 6.3 mm | 6 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 2-1/2 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 185 °F (Water) | -4 | Black | |
| 801-4-BLU-RL | 2961 In Stock | 25485 In Stock | $2.97/foot | FT | 0.13 kg/m | 350 psi | 12.7 mm | 6.3 mm | 6 mm | Synthetic Rubber | Antifreeze Solutions | -40 °C (Oil) | 65 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | 82 Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 185 °F (Water) | -4 | Blue | |
| 801-4-GRA-RL | 2001 In Stock | 15042 In Stock | $2.97/foot | FT | 0.09 lb/ft | 350 psi | 0.500 inch | 6.3 mm | 6 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °C (Oil) | 65 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -4 | 4:1 | Hose Products Division | 28 Inch-Hg | 158 °F (Air) | -4 | Gray | |
| 801-6-BLK-RL | 4149 In Stock | 25970 In Stock | $3.71/foot | FT | 0.11 lb/ft | 2.4 MPa | 15.9 mm | 3/8 inch | 10 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 75 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -6 | 4:1 | Hose Products Division | 28 Inch-Hg | 158 °F (Air) | -6 | Black | |
| 801-6-BLU-RL | 4971 In Stock | 25483 In Stock | $3.71/foot | FT | 0.11 lb/ft | 2.4 MPa | 0.630 inch | 10 mm | 10 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 75 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -6 | 4:1 | Hose Products Division | 711 mm-Hg | 257 °F (Oil) | -6 | Blue | |
| 801-6-GRA-RL | 3277 In Stock | 14335 In Stock | $3.71/foot | FT | 0.16 kg/m | 350 psi | 15.9 mm | 10 mm | 10 mm | MSHA Approved | Lubricating Oils | -40 °F (Oil) | 3 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | HY Series | -6 | 4:1 | Hose Products Division | 711 mm-Hg | 70 °C (Air) | -6 | Gray | |
| 801-8-BLK-RL | 3709 In Stock | 24110 In Stock | $4.28/foot | FT | 0.18 lb/ft | 2.1 MPa | 19.8 mm | 12.5 mm | 12 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 125 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | 82 Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 85 °C (Water) | -8 | Black | |
| 801-8-BLU | Quote Required | 3557 In Stock | $3.36/foot | FT | 0.27 kg/m | 2.1 MPa | 0.780 inch | 1/2 inch | 12 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 125 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | HY Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 185 °F (Water) | -8 | Blue |
