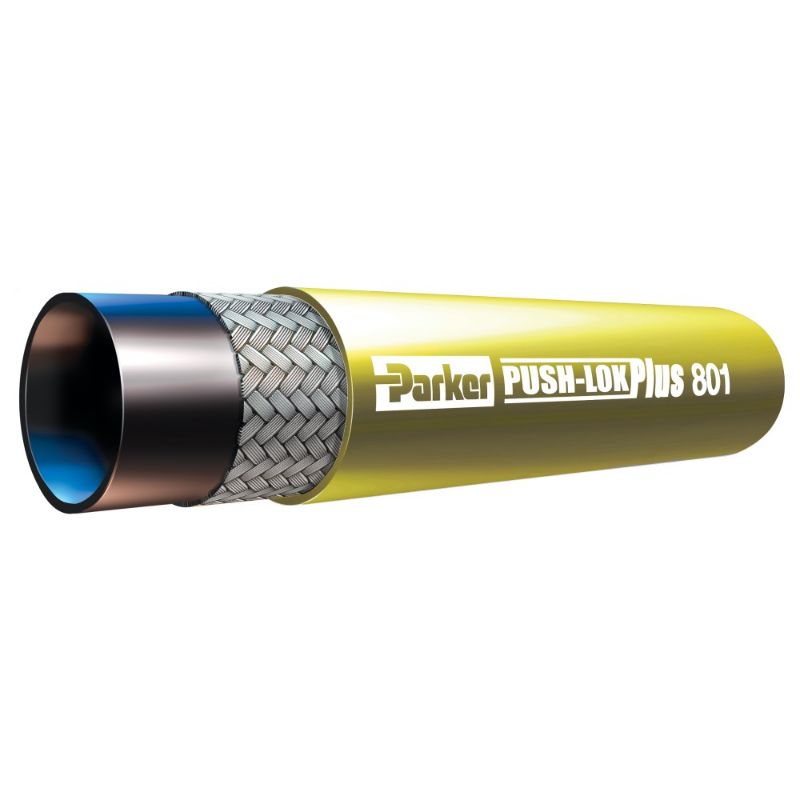

Parker 801-12-YEL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	490 In Stock

Brand Parker

Part No. 801-12-YEL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hose Products Division
Design Factor	4:1	Specifications Met	N/A
Maximum Operating Pressure	300 psi	Size	-12
Inside Diameter	19 mm	Outside Diameter	1.030 inch
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	19 mm
Application	Petroleum Base Hydraulic Fluids	Hose Reinforcement Material	1 Braid of Fiber
Media	Petroleum Hydraulic Fluids	Vacuum Pressure Rating	15 Inch-Hg
Weight	0.36 kg/m	Cover Material	MSHA Approved
Minimum Bend Radius	7 inch	Compatible Fitting	82 Series
Maximum Operating Temperature	185 °F (Water)	Minimum Operating Temperature	-40 °F (Oil)
Hose I.D. (size)	-12	Color	Yellow
