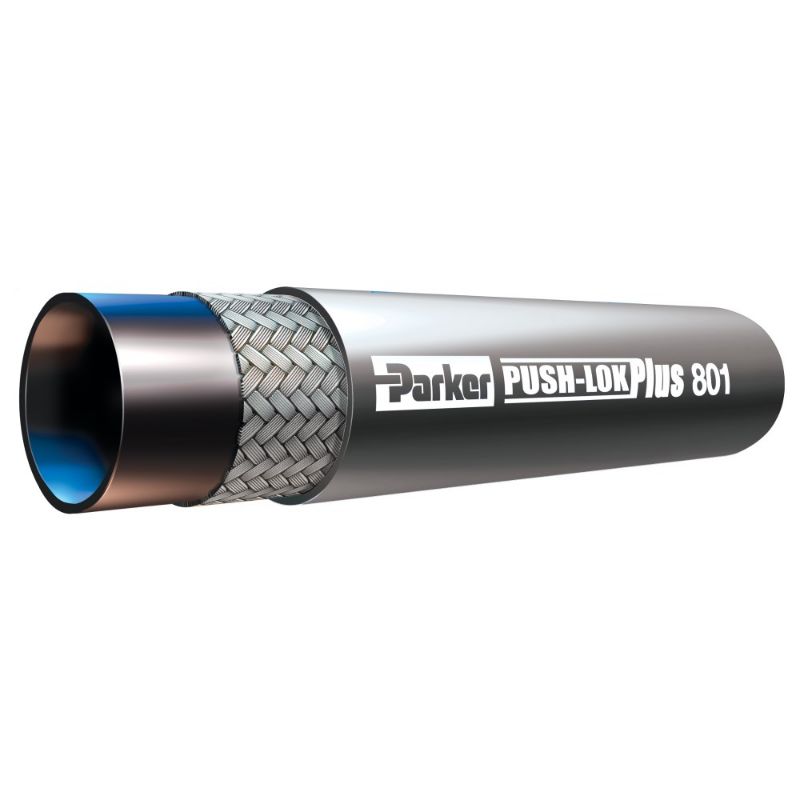

Parker 801-10-GRA-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Name: Parker 801-10-GRA-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
SKU: 801-10-GRA-RL
Price: 5.97 USD
Availability: InStock

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

AFP Availability:

484 In Stock

Jacksonville, FL	290
Richmond, VA	115
Richmond, VA	79 (Pickup only)

Partner Available:

3092 In Stock

Brand Parker

Part No. 801-10-GRA-RL

$5.97/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Design Factor	4:1	Specifications Met	N/A
Maximum Operating Pressure	300 psi	Size	-10
Inside Diameter	5/8 inch	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	16 mm	Application	Lubricating Oils
Hose Reinforcement Material	1 Braid of Fiber	Weight	0.28 kg/m
Minimum Bend Radius	150 mm	Media	Lubricants
Cover Material	MSHA Approved	Compatible Fitting	HY Series
Outside Diameter	23 mm	Vacuum Pressure Rating	381 mm-Hg
Maximum Operating Temperature	257 °F (Oil)	Minimum Operating Temperature	-40 °C (Oil)
Color	Gray	Hose I.D. (size)	-10
