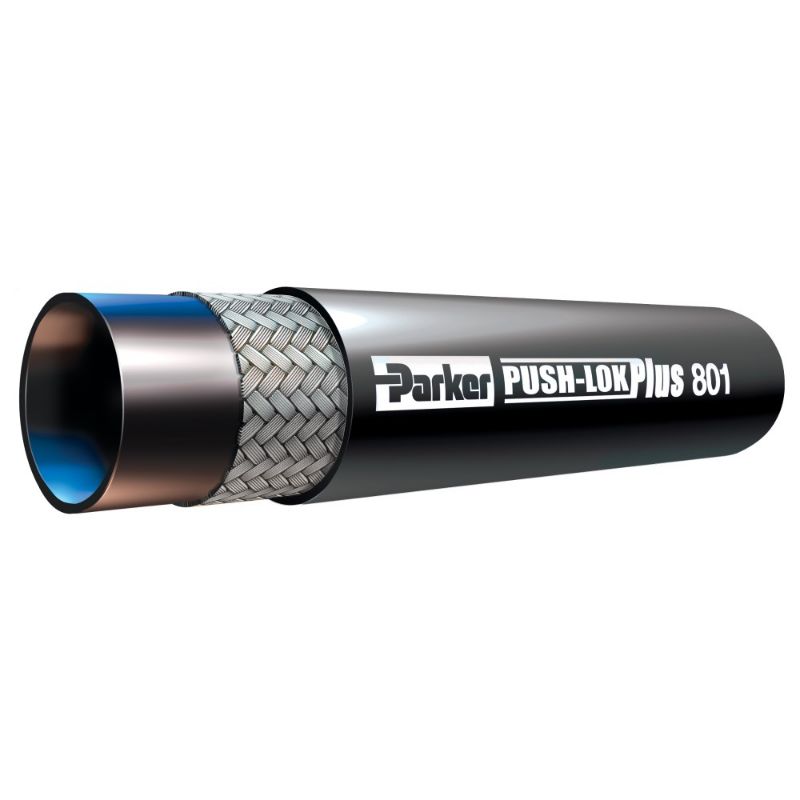

Parker 801-4-BLK-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Name: Parker 801-4-BLK-RL - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
SKU: 801-4-BLK-RL
Price: 2.97 USD
Availability: InStock

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

AFP Availability:

3807 In Stock

Richmond, VA	1,278
Norfolk, VA	629
Richmond, VA	583 (Pickup only)
Ashland, VA	375 (Pickup only)
Mooresville, NC	291
Johnson City, TN	250 (Pickup only)
Knoxville, TN	144
Jacksonville, FL	140
Knoxville, TN	75
Grovetown, GA	41

Partner Available:

33577 In Stock

Brand Parker

Part No. 801-4-BLK-RL

$2.97/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Size	-4	Weight	0.13 kg/m
Design Factor	4:1	Vacuum Pressure Rating	711 mm-Hg
Specifications Met	N/A	Minimum Bend Radius	2-1/2 inch
Hose Inner Tube Material	Synthetic Rubber	Application	Antifreeze Solutions
Maximum Operating Pressure	2.4 MPa	Hose Reinforcement Material	1 Braid of Fiber
Nominal Hose Inside Diameter	6 mm	Inside Diameter	6.3 mm
Media	Lubricants	Cover Material	MSHA Approved
Outside Diameter	0.500 inch	Compatible Fitting	82 Series
Maximum Operating Temperature	185 °F (Water)	Minimum Operating Temperature	-40 °F (Oil)
Hose I.D. (size)	-4	Color	Black
