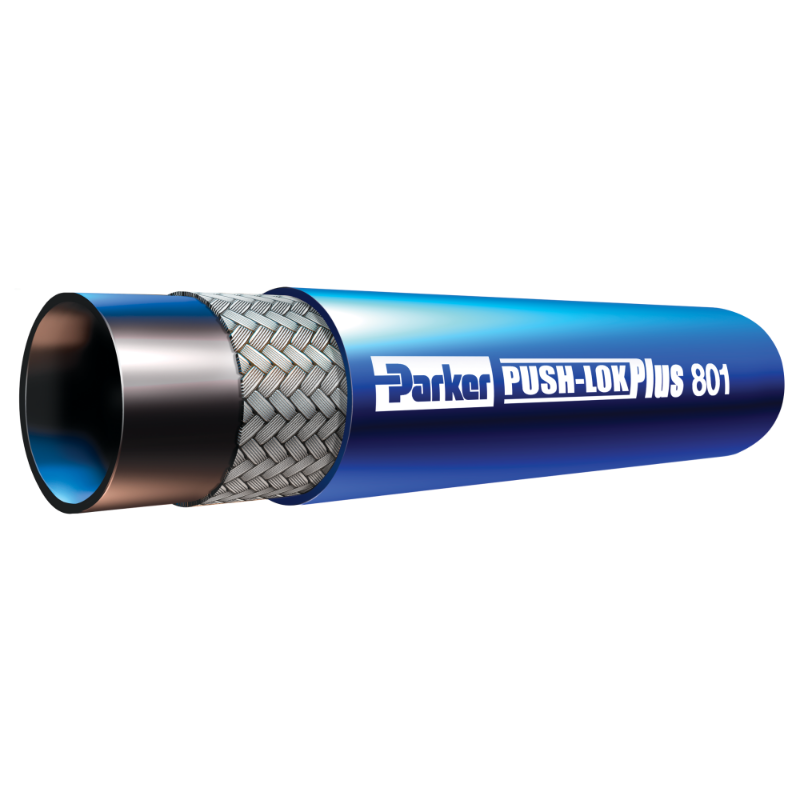

Parker 801-8-BLU - Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	6373 In Stock

Brand Parker

Part No. 801-8-BLU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Vacuum Pressure Rating	28 Inch-Hg	Design Factor	4:1
Specifications Met	N/A	Size	-8
Inside Diameter	1/2 inch	Weight	0.27 kg/m
Cover Material	Synthetic Rubber	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	12 mm	Application	Petroleum Base Hydraulic Fluids
Hose Reinforcement Material	1 Braid of Fiber	Compatible Fitting	HY Series
Maximum Operating Pressure	2.1 MPa	Minimum Bend Radius	125 mm
Outside Diameter	0.780 inch	Media	Air (Compressed Air with traces of Oil)
Maximum Operating Temperature	185 °F (Water)	Minimum Operating Temperature	-40 °F (Oil)
Color	Blue	Hose I.D. (size)	-8
