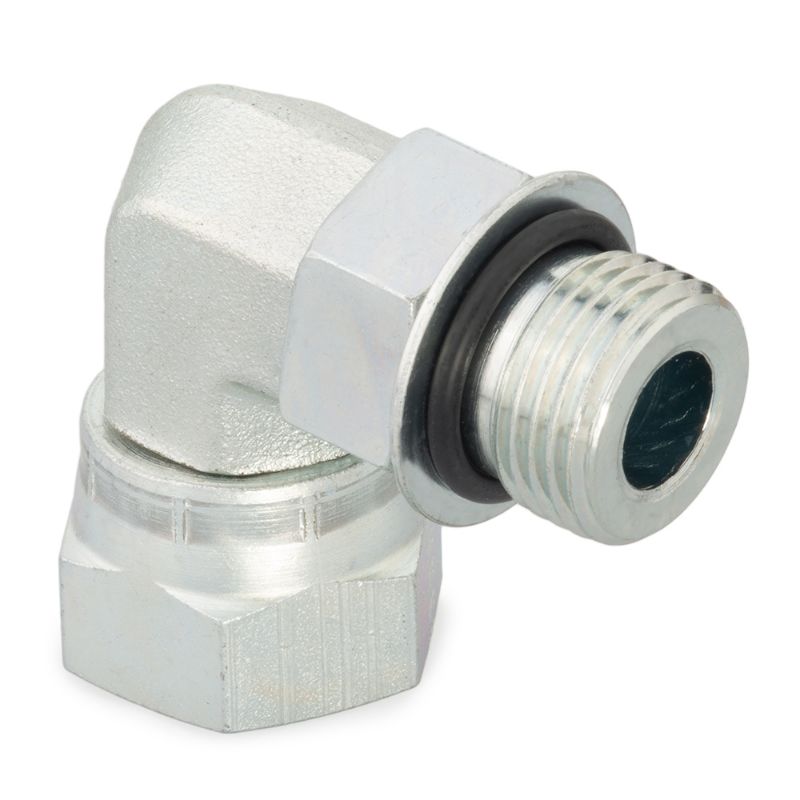

Parker 2507-10-8 - Pipe Fittings and Port Adapters

Name: Parker 2507-10-8 - Pipe Fittings and Port Adapters
SKU: 2507-10-8
Price: 20.87 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:

21 In Stock

Jacksonville, FL	12
Richmond, VA	3
Richmond, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)
Summerville, SC	2

Partner Available:

98 In Stock

Brand Parker

Part No. 2507-10-8

$20.87/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Connection 4 Thread Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
Length (inch)	na	Body Material	Steel
Connection 2 Style	Female NPSM Swivel	Connection 3 Style	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	1/2-14	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Nitrile	Connection Style	SAE-ORB to NPSM Swivel
Connection 1 Style	Male SAE-ORB	Connection 1 Thread Size (inch)	7/8-14
Shape	90° Elbow

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
