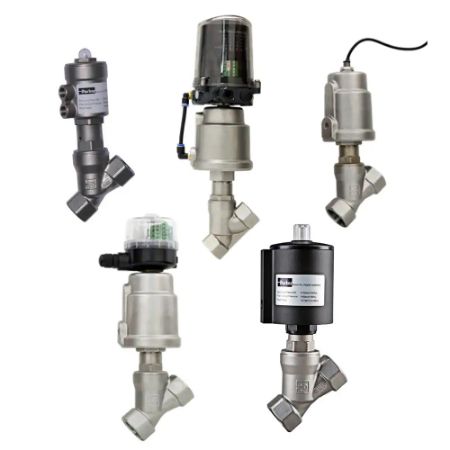

PA Series Angle Seat Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker 2-Way, Angle Seat Valves, Normally Closed and Normally Open, can handle a variety of media from air, inert gasses, water, steam, and corrosive solutions up to temperatures of 356 F. They have durable 304 or 316L stainless steel bodies with aluminum or stainless steel actuator housing options, offer over seat or under seat configurations for all flow applications, and are compliant with Pressure Equipment Directive 97/23/EC. They are available in On/Off configuration with either optional Limit Switch Box or Proximity Sensor and also Proportional Control.
Markets:
•Commercial Equipment
•Food & Beverage Processing
•Power Generation
•Petro-Chemical
•Oil & Gas
•Industrial Process Control
Features/ Benefits:
•Compact Design
•High Flow Rates up to 81.7Cv
•Visual Position Indicator
•Optional Limit Switch Box or Proximity Sensor for direct and remote valve position indication
•Proportional Control Valves for control of Pressure, Temperature, Flow, and Liquid level
•Stainless Steel Actuator Housing for Exceptional Durability
•Mountable in Any Position
•ANSI Class VI for Tight Shut-Off and Long Service Life
•All valves are compliant with Pressure Equipment Directive 97/23/EC
•On/Off Valves with no accessories comply with European ATmosphere EXplosive Directive 2014/34/EU in accordance with Annex VIII §3 specific to Non-Electrical Equipment for Use Within Potentially Explosive Environments - Zone 2/22
Applications:
•Food and Beverage Processing
•Water Technology & Treatment
•Textile Industry
•Cooling Systems on Injection Molding Machines, Industrial Welders, and Machining Centers
•Pharmaceutical & Cosmetic Industry
•Chemical Process Technology
•Refrigeration & Cooling Heat Exchangers
•Sterilizers Steam Supply
•Water Conveyance: Mining, Cement / Concrete Systems, Pulp & Paper
•General Industrial Applications of Aggressive Fluids
•Industrial Laundry Equipment
•Industrial Air Dryers
Read More...Markets:
•Commercial Equipment
•Food & Beverage Processing
•Power Generation
•Petro-Chemical
•Oil & Gas
•Industrial Process Control
Features/ Benefits:
•Compact Design
•High Flow Rates up to 81.7Cv
•Visual Position Indicator
•Optional Limit Switch Box or Proximity Sensor for direct and remote valve position indication
•Proportional Control Valves for control of Pressure, Temperature, Flow, and Liquid level
•Stainless Steel Actuator Housing for Exceptional Durability
•Mountable in Any Position
•ANSI Class VI for Tight Shut-Off and Long Service Life
•All valves are compliant with Pressure Equipment Directive 97/23/EC
•On/Off Valves with no accessories comply with European ATmosphere EXplosive Directive 2014/34/EU in accordance with Annex VIII §3 specific to Non-Electrical Equipment for Use Within Potentially Explosive Environments - Zone 2/22
Applications:
•Food and Beverage Processing
•Water Technology & Treatment
•Textile Industry
•Cooling Systems on Injection Molding Machines, Industrial Welders, and Machining Centers
•Pharmaceutical & Cosmetic Industry
•Chemical Process Technology
•Refrigeration & Cooling Heat Exchangers
•Sterilizers Steam Supply
•Water Conveyance: Mining, Cement / Concrete Systems, Pulp & Paper
•General Industrial Applications of Aggressive Fluids
•Industrial Laundry Equipment
•Industrial Air Dryers
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Division | Seal Material | Connection Type | Maximum Operating Temperature | For Fluid Type | Function | Body Material | Connection Size | Specifications Met | Maximum Operating Pressure | Technology | Product Type | Division | Orifice Size | Signal Input | Actuator Size | Configuration | Product Style | Actuation Type | Flow Coefficient | Maximum Pilot Pressure | Minimum Pilot Pressure | Materials of Construction | Maximum Fluid Temperature | Minimum Operating Pressure | Port Size | Function | Body Material | Configuration | Maximum Steam Pressure | Minimum Pilot Pressure | Actuator Housing Material | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA10SAN3R050S | Quote Required | 3 In Stock | $421.98/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | 2-Way | 316L Stainless Steel | 3/8 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.51 | n/a | 50 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 5.5 Cv | 145 psi | 65.3 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 3/8 inch | 2-Way | 316L Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 65.3 psi | 304 Stainless Steel | 232 psi | |
| PA15S1N4S050A | Quote Required | $281.80/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Steam | 2-Way | 304 Stainless Steel | 1/2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.51 | n/a | 50 mm | Normally Closed - Over Seat | Pneumatic - On/Off | Air Pilot | 5.5 Cv | 145 psi | 43.5 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 1/2 inch | 2-Way | 304 Stainless Steel | Normally Closed - Over Seat | 130 psi | 43.5 psi | Aluminium | 232 psi | ||
| PA15S3N4S050A | Quote Required | 1 Limited Stock | $293.04/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Liquids | Normally Open | 304 Stainless Steel | 1/2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.51 | n/a | 50 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 5.5 Cv | 145 psi | 50.8 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 1/2 inch | 2-Way | 304 Stainless Steel | Normally Open - Under Seat | 130 psi | 50.8 psi | Aluminium | 232 psi | |
| PA15SAN4R050S | Quote Required | 2 Limited Stock | $450.88/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | 2-Way | 316L Stainless Steel | 1/2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Pneumatics | Angle Valve | Fluid Control Division | 0.51 | n/a | 50 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 5.5 Cv | 145 psi | 65.3 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 1/2 inch | 2-Way | 316L Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 65.3 psi | 304 Stainless Steel | 232 psi | |
| PA20S1N5S050A | Quote Required | 1 Limited Stock | $292.56/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Inert Gas | 2-Way | 304 Stainless Steel | 3/4 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.71 | n/a | 50 mm | Normally Closed - Over Seat | Pneumatic - On/Off | Air Pilot | 10.5 Cv | 145 psi | 43.5 - 58 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 3/4 inch | 2-Way | 304 Stainless Steel | Normally Closed - Over Seat | 130 psi | 43.5 - 58 psi | Aluminium | 232 psi | |
| PA20S3N5R050S | Quote Required | $493.98/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | Normally Open | 316L Stainless Steel | 3/4 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Pneumatics | Angle Valve | Fluid Control Division | 0.71 | n/a | 50 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 11.1 Cv | 145 psi | 50.8 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 3/4 inch | 2-Way | 316L Stainless Steel | Normally Open - Under Seat | 130 psi | 50.8 psi | 304 Stainless Steel | 232 psi | ||
| PA20S3N5S050A | Quote Required | $302.10/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Liquids | 2-Way | 304 Stainless Steel | 3/4 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.71 | n/a | 50 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 11.1 Cv | 145 psi | 50.8 psi | Aluminium | 356 °F | 0 psi | 3/4 inch | 2-Way | 304 Stainless Steel | Normally Open - Under Seat | 130 psi | 50.8 psi | Aluminium | 232 psi | ||
| PA20SAN5R050S | Quote Required | 1 Limited Stock | $487.27/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | Normally Closed | 316L Stainless Steel | 3/4 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 145.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 0.71 | n/a | 50 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 10.5 Cv | 145 psi | 65.3 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 3/4 inch | 2-Way | 316L Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 65.3 psi | 304 Stainless Steel | 145 psi | |
| PA20SAN5S050A | Quote Required | $295.89/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | 2-Way | 304 Stainless Steel | 3/4 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 145.0 psi | Pneumatics | Angle Valve | Fluid Control Division | 0.71 | n/a | 50 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 10.5 Cv | 145 psi | 65.3 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 3/4 inch | 2-Way | 304 Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 65.3 psi | Aluminium | 145 psi | ||
| PA25S1N6R063S | Quote Required | $530.44/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Steam | 2-Way | 316L Stainless Steel | 1 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 0.94 | n/a | 63 mm | Normally Closed - Over Seat | Pneumatic - On/Off | Air Pilot | 18.7 Cv | 145 psi | 43.5 - 58 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 1 inch | 2-Way | 316L Stainless Steel | Normally Closed - Over Seat | 130 psi | 43.5 - 58 psi | 304 Stainless Steel | 232 psi | ||
| PA25S1N6S050A | Quote Required | $314.98/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Inert Gas | Normally Closed | 304 Stainless Steel | 1 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 0.94 | n/a | 50 mm | Normally Closed - Over Seat | Pneumatic - On/Off | Air Pilot | 18.7 Cv | 145 psi | 43.5 - 80 psi | Aluminium | 356 °F | 0 psi | 1 inch | 2-Way | 304 Stainless Steel | Normally Closed - Over Seat | 130 psi | 43.5 - 80 psi | Aluminium | 232 psi | ||
| PA25S3N6R063S | Quote Required | $515.22/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Inert Gas | 2-Way | 316L Stainless Steel | 1 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 0.94 | n/a | 63 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 18.1 Cv | 145 psi | 65.3 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 1 inch | 2-Way | 316L Stainless Steel | Normally Open - Under Seat | 130 psi | 65.3 psi | 304 Stainless Steel | 232 psi | ||
| PA25S3N6S063A | Quote Required | $351.40/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Liquids | 2-Way | 304 Stainless Steel | 1 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 0.94 | n/a | 63 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 18.1 Cv | 145 psi | 65.3 psi | Aluminium | 356 °F | 0 psi | 1 inch | 2-Way | 304 Stainless Steel | Normally Open - Under Seat | 130 psi | 65.3 psi | Aluminium | 232 psi | ||
| PA25SAN6S063A | Quote Required | 4 In Stock | $339.80/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | and Liquids | Normally Closed | 304 Stainless Steel | 1 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 116.0 psi | Pneumatics | Angle Valve | Fluid Control Division | 0.94 | n/a | 63 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 18.7 Cv | 145 psi | 65.3 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 1 inch | 2-Way | 304 Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 65.3 psi | Aluminium | 116 psi | |
| PA40S1N8S063A | Quote Required | $477.39/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Steam | 2-Way | 304 Stainless Steel | 1-1/2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Process Control | Angle Valve | Fluid Control Division | 1.38 | n/a | 63 mm | Normally Closed - Over Seat | Pneumatic - On/Off | Air Pilot | 37.3 Cv | 145 psi | 43.5 - 94.3 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 1-1/2 inch | 2-Way | 304 Stainless Steel | Normally Closed - Over Seat | 130 psi | 43.5 - 94.3 psi | Aluminium | 232 psi | ||
| PA40S3N8S080A | Quote Required | $580.60/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Air | 2-Way | 304 Stainless Steel | 1-1/2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 232.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 1.38 | n/a | 80 mm | Normally Open - Under Seat | Pneumatic - On/Off | Air Pilot | 36.2 Cv | 145 psi | 43.5 psi | Aluminium (Actuator Housing) | 356 °F | 0 psi | 1-1/2 inch | 2-Way | 304 Stainless Steel | Normally Open - Under Seat | 130 psi | 43.5 psi | Aluminium | 232 psi | ||
| PA50SAN9R100S | Quote Required | $1,367.17/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | and Liquids | 2-Way | 316L Stainless Steel | 2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 130.0 psi | Fluid & Gas Handling | Angle Valve | Fluid Control Division | 1.77 | n/a | 100 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 58.3 Cv | 145 psi | 58.0 psi | 304 Stainless Steel (Actuator Housing) | 356 °F | 0 psi | 2 inch | 2-Way | 316L Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 58.0 psi | 304 Stainless Steel | 130 psi | ||
| PA50SAN9S100A | Quote Required | $943.57/each | EA | Parker | Fluid Control Division | PTFE | NPT | 140 °F | Inert Gas | 2-Way | 304 Stainless Steel | 2 inch | European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1 | 130.0 psi | Process Control | Angle Valve | Fluid Control Division | 1.77 | n/a | 100 mm | Normally Closed - Under Seat Anti-Waterhammer | Pneumatic - On/Off | Air Pilot | 58.3 Cv | 145 psi | 58.0 psi | Aluminium | 356 °F | 0 psi | 2 inch | 2-Way | 304 Stainless Steel | Normally Closed - Under Seat Anti-Waterhammer | N/A | 58.0 psi | Aluminium | 130 psi |
