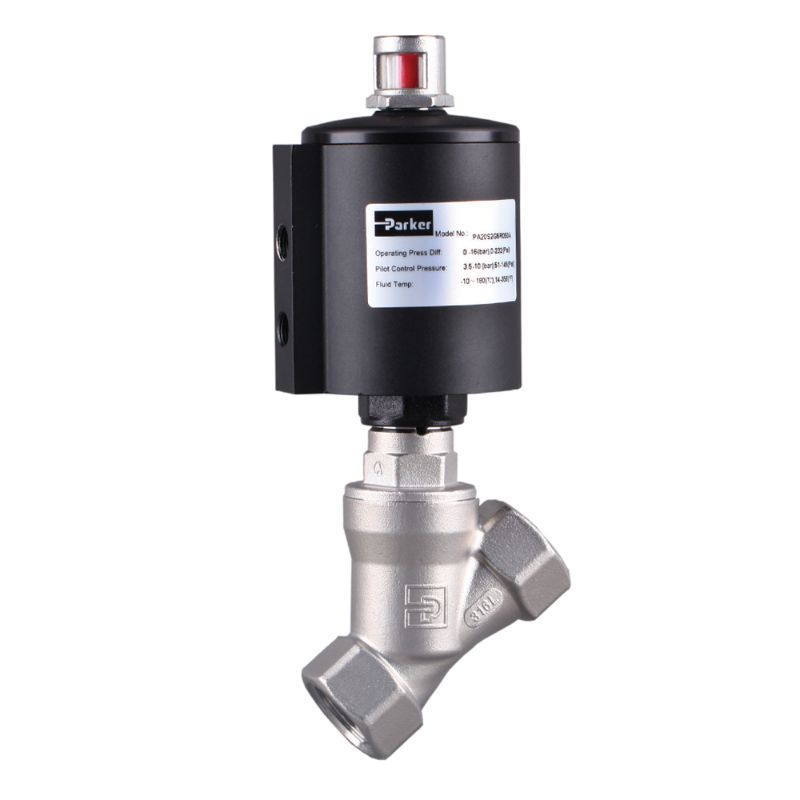

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PA15S3N4S050A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PA15S3N4S050A

$288.91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid Control Division	Function	Normally Open
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	140 °F	Connection Size	1/2 inch
For Fluid Type	Liquids	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Maximum Operating Pressure	232.0 psi	Technology	Process Control
Product Type	Angle Valve	Division	Fluid Control Division
Orifice Size	0.51	Signal Input	n/a
Actuator Size	50 mm	Body Material	304 Stainless Steel
Configuration	Normally Open - Under Seat	Product Style	Pneumatic - On/Off
Actuation Type	Air Pilot	Flow Coefficient	5.5 Cv
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	50.8 psi
Materials of Construction	Aluminium (Actuator Housing)	Maximum Fluid Temperature	356 °F
Minimum Operating Pressure	0 psi	Port Size	1/2 inch
Function	2-Way	Body Material	304 Stainless Steel
Configuration	Normally Open - Under Seat	Maximum Steam Pressure	130 psi
Minimum Pilot Pressure	50.8 psi	Actuator Housing Material	Aluminium
Maximum Operating Pressure	232 psi
