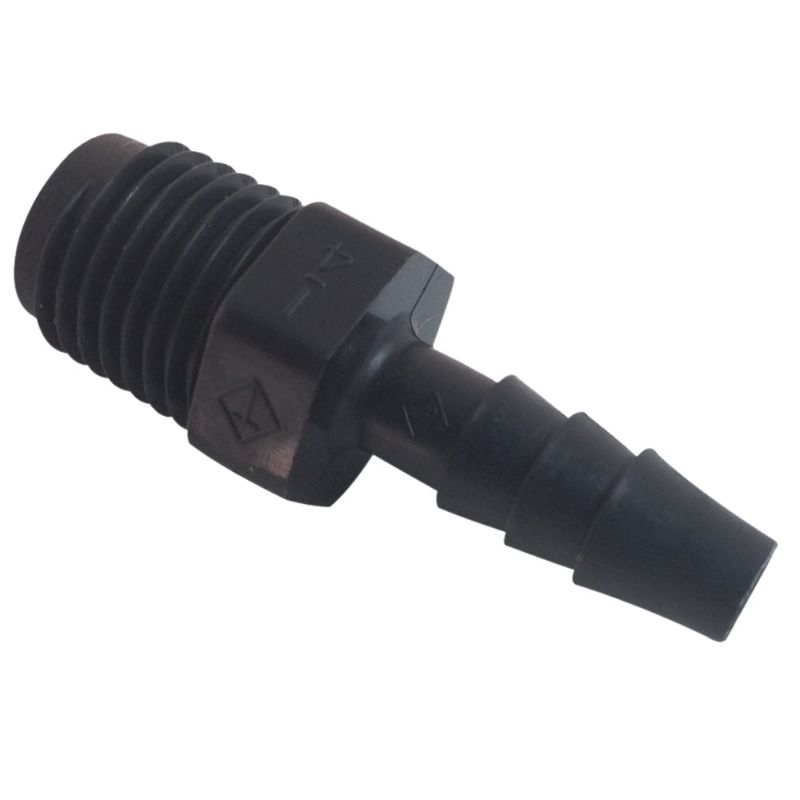

Parker P8MEB8 - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	148 In Stock

Brand Parker

Part No. P8MEB8

$1.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Specifications Met	FDA	For Fluid Type	Air
Dimensional Weight	2.7594 lb	Application	Pneumatic Systems
Maximum Operating Pressure	8.5 bar	Maximum Operating Temperature	104 °C
Minimum Operating Temperature	-12 °C	Connection 3 Type	N/A
Compatible Tube	Vinyl	Connection 1 Type	Barbed
Color	Black	Brand	Parker
Connection 1 Size	1/2	Technology	Fluid & Gas Handling
Connection 3 Size	N/A	Connection 2 Type	Male NPT
Division	Fluid System Connectors Division	Shape	90° Elbow
Vacuum Pressure Rating	-29	Configuration	Tube to Pipe
Connection 2 Size	1/2	Media	Water
Body Material	Polypropylene	Connection 2 Type	Barb
Connection 1 Style	Barb	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Thread Size	1/4"	Shape	Elbow - Male
Product Style	n/a	Connection 1 Hose I.D. (inch)	n/a
Connection 1 Thread Size	1"	Body Material	Polyethylene
Connection 1 Size	1/2"	Configuration	Tube to Pipe
Connection 2 Size	1/2"	Connection 3 Size	N/A
Connection 1 Type	Barbed	Color	Black
Connection 3 Type	N/A
