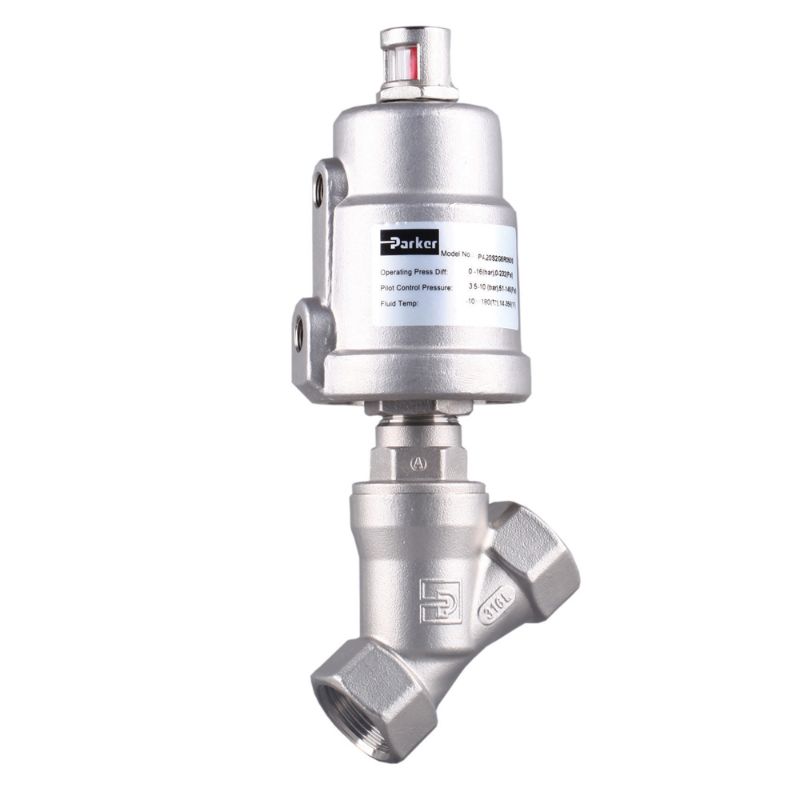

Parker PA20S3N5R050S - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PA20S3N5R050S

$487.02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid Control Division	Function	Normally Open
Seal Material	PTFE	Connection Type	NPT
Technology	Pneumatics	Maximum Operating Temperature	140 °F
For Fluid Type	Air	Connection Size	3/4 inch
Body Material	316L Stainless Steel	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Maximum Operating Pressure	232.0 psi	Product Type	Angle Valve
Division	Fluid Control Division	Orifice Size	0.71
Signal Input	n/a	Actuator Size	50 mm
Configuration	Normally Open - Under Seat	Product Style	Pneumatic - On/Off
Actuation Type	Air Pilot	Maximum Pilot Pressure	145 psi
Minimum Pilot Pressure	50.8 psi	Materials of Construction	304 Stainless Steel (Actuator Housing)
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
Flow Coefficient	11.1 Cv	Function	2-Way
Body Material	316L Stainless Steel	Configuration	Normally Open - Under Seat
Port Size	3/4 inch	Maximum Steam Pressure	130 psi
Minimum Pilot Pressure	50.8 psi	Actuator Housing Material	304 Stainless Steel
Maximum Operating Pressure	232 psi
