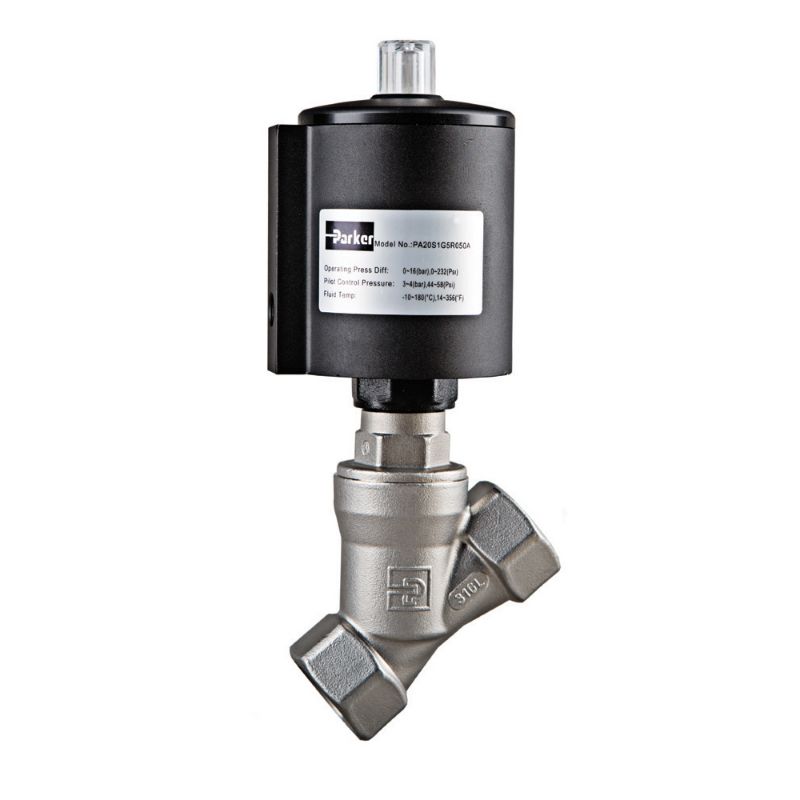

Parker PA20SAN5S050A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. PA20SAN5S050A

$294.68

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid Control Division	Seal Material	PTFE
Connection Type	NPT	Technology	Pneumatics
Maximum Operating Temperature	140 °F	For Fluid Type	Air
Connection Size	3/4 inch	Function	2-Way
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Product Type	Angle Valve
Division	Fluid Control Division	Orifice Size	0.71
Signal Input	n/a	Actuator Size	50 mm
Body Material	304 Stainless Steel	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Product Style	Pneumatic - On/Off	Actuation Type	Air Pilot
Flow Coefficient	10.5 Cv	Maximum Pilot Pressure	145 psi
Minimum Pilot Pressure	65.3 psi	Materials of Construction	Aluminium (Actuator Housing)
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
Maximum Operating Pressure	145.0 psi	Function	2-Way
Body Material	304 Stainless Steel	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Port Size	3/4 inch	Maximum Steam Pressure	N/A
Minimum Pilot Pressure	65.3 psi	Actuator Housing Material	Aluminium
Maximum Operating Pressure	145 psi
