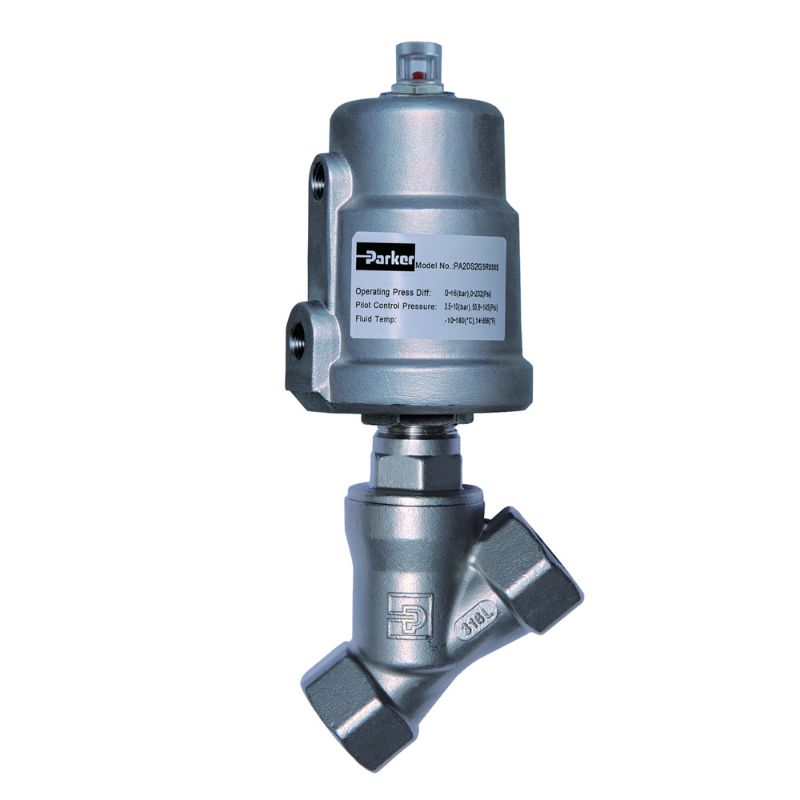

Parker PA10SAN3R050S - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. PA10SAN3R050S

$416.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid Control Division	Seal Material	PTFE
Connection Type	NPT	Maximum Operating Temperature	140 °F
For Fluid Type	Air	Function	2-Way
Body Material	316L Stainless Steel	Connection Size	3/8 inch
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Maximum Operating Pressure	232.0 psi
Technology	Process Control	Product Type	Angle Valve
Division	Fluid Control Division	Orifice Size	0.51
Signal Input	n/a	Actuator Size	50 mm
Configuration	Normally Closed - Under Seat Anti-Waterhammer	Product Style	Pneumatic - On/Off
Actuation Type	Air Pilot	Flow Coefficient	5.5 Cv
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	65.3 psi
Materials of Construction	304 Stainless Steel (Actuator Housing)	Maximum Fluid Temperature	356 °F
Minimum Operating Pressure	0 psi	Port Size	3/8 inch
Function	2-Way	Body Material	316L Stainless Steel
Configuration	Normally Closed - Under Seat Anti-Waterhammer	Maximum Steam Pressure	N/A
Minimum Pilot Pressure	65.3 psi	Actuator Housing Material	304 Stainless Steel
Maximum Operating Pressure	232 psi
