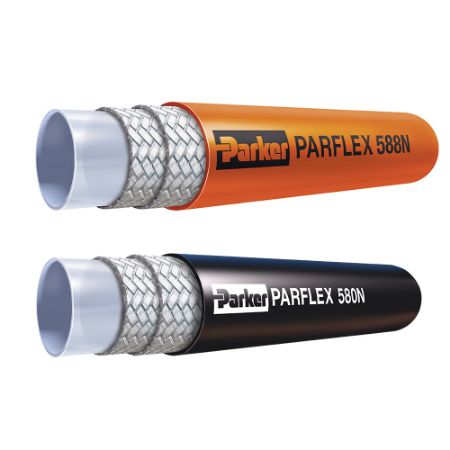

High Pressure Hose - 580N/588N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 580N/588N High Pressure Hose meets SAE 100R8 specifications and, with a lighter weight and smaller O.D. than the 100R2, replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This high pressure hydraulic hose features a highly developed design, available in twin-line and multi-line constructions, to ensure high performance in hydraulic and pneumatic circuits and systems applications. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 580N/588N High Pressure Hose combines a variety of advantages to fulfill application requirements in expanding fluid handling and industrial pneumatic markets.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Inside Diameter | Cover Material | Media | Maximum Operating Temperature | Application | Minimum Operating Temperature | Division | Product Style | Outside Diameter | Minimum Bend Radius | Design Factor | Hose Inner Tube Material | Specifications Met | Weight | Maximum Operating Pressure | Size | Hose Reinforcement Material | Compatible Fitting | Hose Type | Hose I.D. (inch) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 580N-12 | Quote Required | 365 In Stock | $13.86/foot | FT | 3/4 inch | Polyurethane | Petroleum Hydraulic Fluids | 212 °F | Construction Equipment | -40 °F | Parflex Division | Standard | 1.150 inch | 8 inch | 4:1 | Polyamide (PA) | DNG GL | 0.35 kg/m | 155 bar | -12 | Fiber | 56 Series | General Purpose | 3/4 | ||
| 580N-16 | Quote Required | 150 In Stock | $21.21/foot | FT | 1 inch | Polyurethane | Lubricants (Oils) | 100 °C | Manufacturing | -40 °F | Parflex Division | Standard | 1.470 inch | 254 mm | 4:1 | Polyamide (PA) | SAE 100R8 | 0.56 kg/m | 2000 psi | -16 | Fiber | 56 Series | General Purpose | 1 | ||
| 580N-8 | Quote Required | 338 In Stock | $10.95/foot | FT | 1/2 inch | Polyurethane | Chemicals | 100 °C | Fluid Handling | -40 °F | Parflex Division | Standard | 22.6 mm | 4 inch | 4:1 | Polyamide (PA) | SAE 100R8 | 0.31 kg/m | 241 bar | -8 | Fiber | 56 Series | General Purpose | 1/2 | ||
| 588N-10 | Quote Required | $17.05/foot | FT | 16 mm | Polyurethane | Lubricants (Oils) | 100 °C | Industrial | -40 °F | Parflex Division | Non-Conductive | 0.980 inch | 6 inch | 4:1 | Non-Conductive | MSHA | 0.21 lb/ft | 190 bar | -10 | Fiber | 56 Series | Non Conductive | 5/8 | Do not use for pneumatic applications | ||
| 588N-12 | 36 In Stock | 102 In Stock | $17.06/foot | FT | 3/4 inch | Polyurethane | Petroleum Hydraulic Fluids | 212 °F | Agriculture Equipment | -40 °C | Parflex Division | Non-Conductive | 1.150 inch | 203 mm | 4:1 | Non-Conductive | DNV GL | 0.23 lb/ft | 2250 psi | -12 | Fiber | 56 Series | Non Conductive | 3/4 | Do not use for pneumatic applications | |
| 588N-8 | 120 In Stock | 542 In Stock | $11.66/foot | FT | 13 mm | Polyurethane | Chemicals | 100 °C | Fluid Handling | -40 °F | Parflex Division | Non-Conductive | 22.6 mm | 102 mm | 4:1 | Non-Conductive | SAE 100R8 | 0.21 lb/ft | 24.1 MPa | -8 | Fiber | 56 Series | Non Conductive | 1/2 | Do not use for pneumatic applications |
