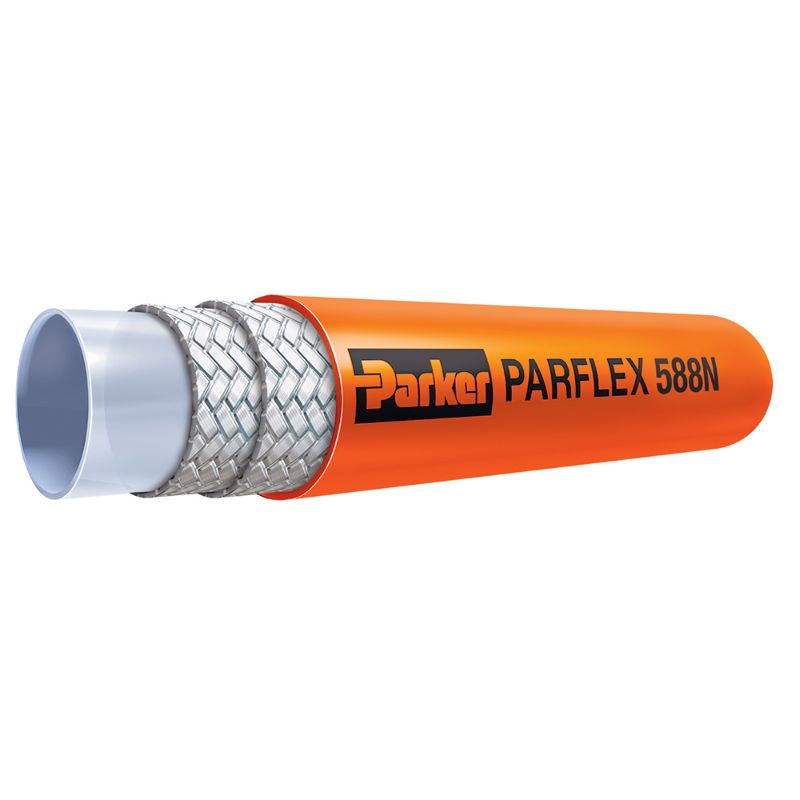

Parker 588N-12 - High Pressure Hose - 580N/588N

Name: Parker 588N-12 - High Pressure Hose - 580N/588N
SKU: 588N-12
Price: 17.06 USD
Availability: InStock

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

AFP Availability:

36 In Stock

Grovetown, GA

Partner Available:

143 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 588N-12

$17.06/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	212 °F
Division	Parflex Division	Media	Petroleum Hydraulic Fluids
Size	-12	Compatible Fitting	56 Series
Hose Inner Tube Material	Non-Conductive	Design Factor	4:1
Product Style	Non-Conductive	Minimum Operating Temperature	-40 °C
Application	Agriculture Equipment	Cover Material	Polyurethane
Specifications Met	DNV GL	Minimum Bend Radius	203 mm
Hose Reinforcement Material	Fiber	Weight	0.23 lb/ft
Maximum Operating Pressure	2250 psi	Outside Diameter	1.150 inch
Inside Diameter	3/4 inch	Hose Type	Non Conductive
Notes	Do not use for pneumatic applications	Hose I.D. (inch)	3/4
