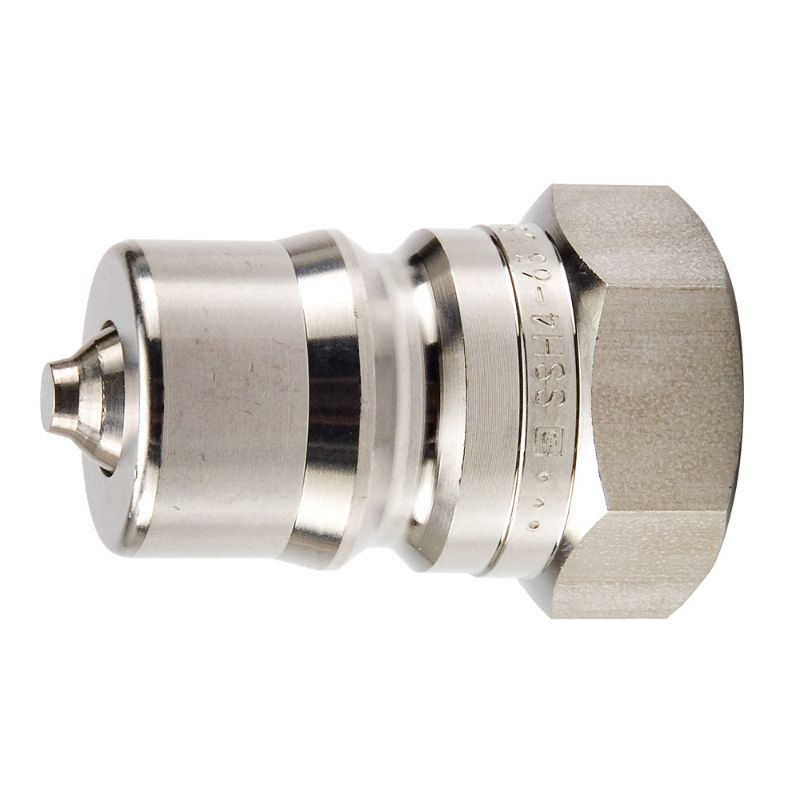

Parker SSH6-63 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	50 In Stock

Brand Parker

Part No. SSH6-63

$330.51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	ISO 7241-1, series B
Maximum Operating Temperature	250 °F	Valve Material	316 Stainless steel
Valve Type	Poppet	Flow Rate	106 L/min
Product Type	Manual Connect	Plating Type	na
Division	Quick Coupling Division	Hex Size	1.38 inch
Vacuum Pressure Rating	-0.9 bar	Minimum Operating Temperature	-40 °F
Body Material	Stainless Steel	Application	General Purpose
Body Size (inch)	3/4	Body Material	316 Stainless Steel
Connection Thread Size (inch)	3/4 - 14	Coupling Half	Male Nipple
Maximum Operating Pressure	3000	Seal Material	Nitrile
Connection Type	Female NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
