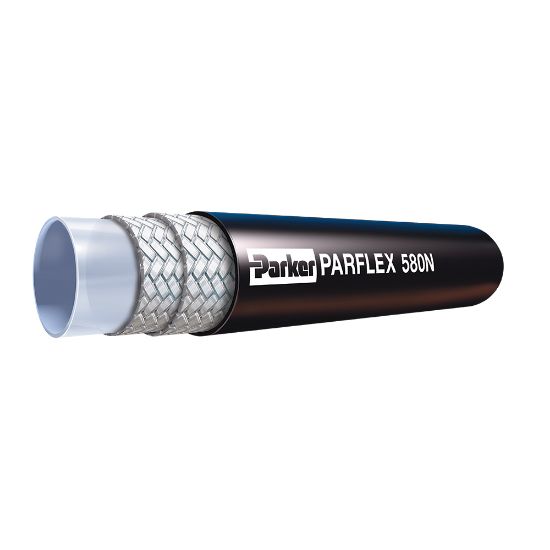

Parker 580N-8 - High Pressure Hose - 580N/588N

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Availability:	Quote Required
Partner Available:	468 In Stock

Brand Parker

Part No. 580N-8

$10.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inner Tube Material	Polyamide (PA)
Design Factor	4:1	Maximum Operating Pressure	241 bar
Size	-8	Hose Reinforcement Material	Fiber
Compatible Fitting	56 Series	Application	Fluid Handling
Outside Diameter	22.6 mm	Minimum Bend Radius	4 inch
Cover Material	Polyurethane	Weight	0.31 kg/m
Specifications Met	SAE 100R8	Media	Chemicals
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-40 °F
Division	Parflex Division	Inside Diameter	1/2 inch
Product Style	Standard	Hose I.D. (inch)	1/2
Hose Type	General Purpose
