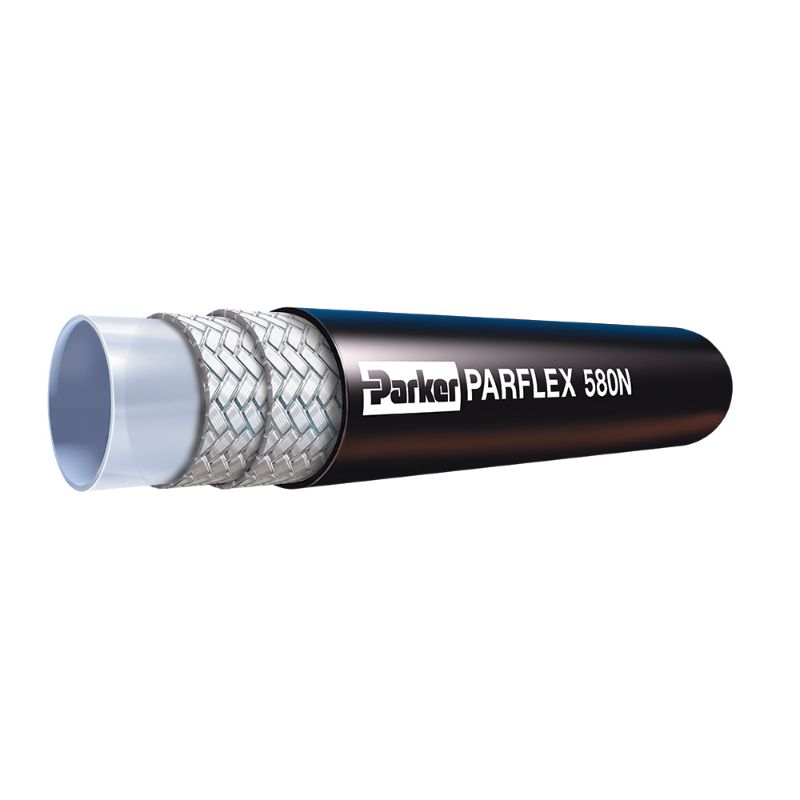

Parker 580N-12 - High Pressure Hose - 580N/588N

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Availability:	Quote Required
Partner Available:	987 In Stock

Brand Parker

Part No. 580N-12

$13.46

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/4 inch
Cover Material	Polyurethane	Media	Petroleum Hydraulic Fluids
Maximum Operating Temperature	212 °F	Application	Construction Equipment
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Product Style	Standard	Outside Diameter	1.150 inch
Minimum Bend Radius	8 inch	Design Factor	4:1
Hose Inner Tube Material	Polyamide (PA)	Specifications Met	DNG GL
Weight	0.35 kg/m	Maximum Operating Pressure	155 bar
Size	-12	Hose Reinforcement Material	Fiber
Compatible Fitting	56 Series	Hose Type	General Purpose
Hose I.D. (inch)	3/4
