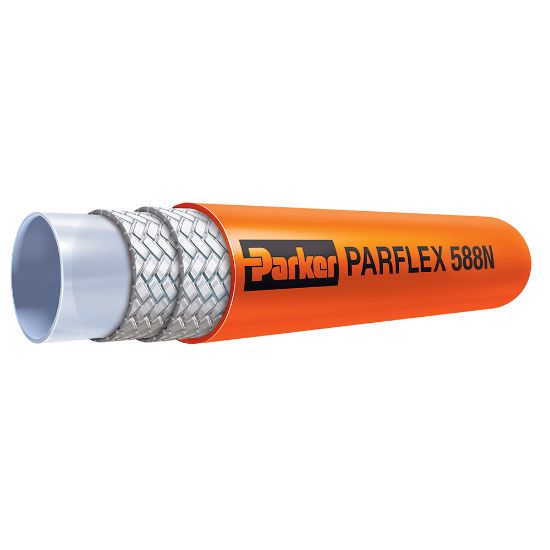

Parker 588N-8 - High Pressure Hose - 580N/588N

Name: Parker 588N-8 - High Pressure Hose - 580N/588N
SKU: 588N-8
Price: 11.66 USD
Availability: InStock

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

AFP Availability:

120 In Stock

Grovetown, GA

120

Partner Available:

556 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 588N-8

$11.66/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °F
Application	Fluid Handling	Cover Material	Polyurethane
Specifications Met	SAE 100R8	Minimum Bend Radius	102 mm
Hose Reinforcement Material	Fiber	Weight	0.21 lb/ft
Maximum Operating Pressure	24.1 MPa	Inside Diameter	13 mm
Outside Diameter	22.6 mm	Division	Parflex Division
Maximum Operating Temperature	100 °C	Compatible Fitting	56 Series
Size	-8	Media	Chemicals
Hose Inner Tube Material	Non-Conductive	Product Style	Non-Conductive
Design Factor	4:1	Hose I.D. (inch)	1/2
Hose Type	Non Conductive	Notes	Do not use for pneumatic applications
