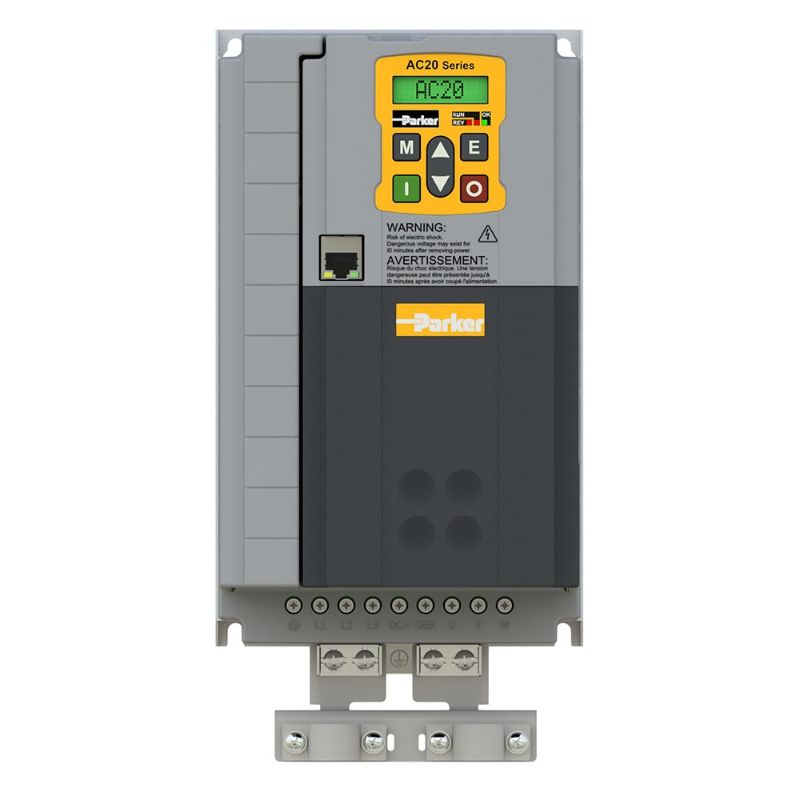

Parker 20G-33-0170-BF - AC Variable Frequency Drives, HP Rated - AC20 Series

The AC20 advanced compact drive provides Ethernet connectivity and Safe Torque Off in an economical but highly featured drive for open or closed-loop AC induction and Permanent Magnet motor control in applications up to 250HP/180kW

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20G-33-0170-BF

$1,759.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Compatible Feedback Device	Incremental Encoder
Overload Rating	150 % for 60s	Specifications Met	RoHS Compliance
Compatible Motor Type	Induction	Product Series	AC20
Modes of Control	V/Hz	Brand	Parker
Operating Altitude	up to 1000 m ASL (derate > 1000m)	Drive Axis Type	Single Axis Technology
Division	Electronic Motion and Controls Division	Output Power	5
Operating Temperature	0 to 40 °C (derate up to 45°C max)	Output Current Rating	17
Product Type	AC Drive	Communication Interface	Ethernet TCP/IP
Input Voltage	3*230	Input Voltage	3*230VAC
Output Current Rating	17 A
