High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

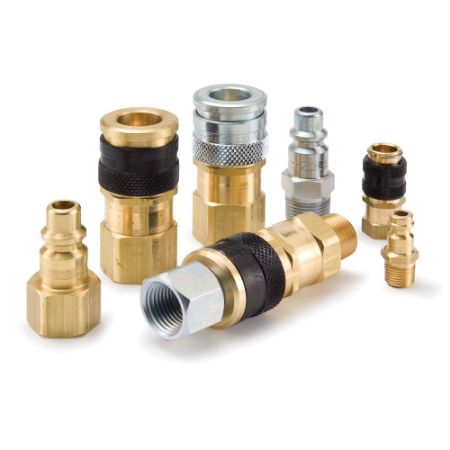

Picture for category High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

HF Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples except for the 1/8" size that connects only with HF Series Nipples. Parker's HF Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.

Technical Characteristics:
• Sizes: 1/8” – 1/2”
• Materials: Brass, Steel, Stainless Steel
• Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation

Features/Benefits:
• Corrosion resistant valve with stainless steel locking balls and valve spring
• Heavy duty version has steel body and sleeve for durability
• Easy push to connect operation
• Slim profile is compact in confined spaces
• Sleeve guard protects against accidental disconnection
• Sizes 1/4" through 1/2" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability.

Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceUOMPlating TypeApplicationSpecifications MetSeal MaterialLock TypeBody MaterialMinimum Operating TemperatureDivisionSleeve TypeMediaMaximum Operating TemperatureMaximum Operating PressureCoupling HalfValve TypeConnection Thread Size (inch)Body Size (inch)Hose I.D. (inch)Thread StyleBody MaterialConnection Type
HF-251-4FP
1 Limited Stock
2 Limited Stock
$19.36/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular1/4 - 181/4naFemaleBRASSNPSF
HF-251-4HB
3 In Stock
8 In Stock
$11.66/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/41/4naBRASSHose barb
HF-251-4HB-S
14 In Stock
Quote Required
$7.80/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/41/4naSteel and brassHose barb
HF-251-4MP
2 Limited Stock
51 In Stock
$19.52/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular1/4 - 181/4naMaleBRASSNPTF
HF-251-4PL
5 In Stock
Quote Required
$20.10/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/41/4naBRASSPush-Lok hose barb
HF-251-4PL-S
6 In Stock
Quote Required
$10.56/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/41/4naSteel and brassPush-Lok hose barb
HF-251-6FP
2 Limited Stock
12 In Stock
$23.70/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular3/8 - 181/4naFemaleBRASSNPSF
HF-251-6HB
1 Limited Stock
Quote Required
$20.55/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/43/8naBRASSHose barb
HF-251-6HB-S
3 In Stock
Quote Required
$9.98/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/43/8naSteel and brassHose barb
HF-251-6MP
3 In Stock
5 In Stock
$36.57/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular3/8 - 181/4naMaleBRASSNPTF
HF-251-6MP-S
4 In Stock
1 Limited Stock
$9.50/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular3/8 - 181/4naMaleSteel and brassNPTF
HF-251-6PL
1 Limited Stock
96 In Stock
$18.60/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/43/8naBRASSPush-Lok hose barb
HF-251-6PL-S
13 In Stock
Quote Required
$27.44/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna1/43/8naSteel and brassPush-Lok hose barb
HF-371-4FP
3 In Stock
7 In Stock
$15.94/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular1/4 - 183/8naFemaleBRASSNPSF
HF-371-6FP-S
5 In Stock
Quote Required
$18.04/each
EAZinc with clear trivalent chromate on steel body and sleevePneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular3/8 - 183/8naFemaleSteel and brassNPSF
HF-371-8HB
13 In Stock
42 In Stock
$15.48/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna3/81/2naBRASSHose barb
HF-371-8MP
6 In Stock
2 Limited Stock
$15.74/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubular1/2 - 143/8naMaleBRASSNPTF
HF-371-8PL
5 In Stock
Quote Required
$33.98/each
EAnaPneumaticConnects with A-A-59439 (MIL-C-4109F, ISO 6150-BNitrileLocking ballsBrass-40Quick Coupling DivisionPush to connectLow pressure fluids and compressed air250300CouplerTubularna3/81/2naBRASSPush-Lok hose barb
