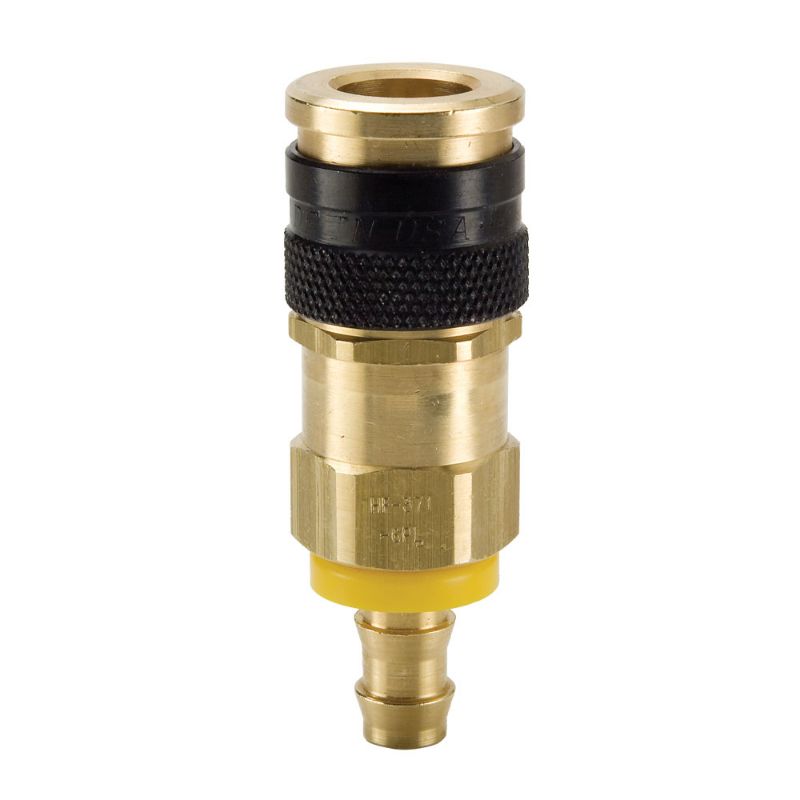

Parker HF-251-4PL - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: Parker HF-251-4PL - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-251-4PL
Price: 20.10 USD
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:

5 In Stock

North Chesterfield, VA	3
Ashland, VA	2 (Pickup only)

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. HF-251-4PL

$20.10/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Tubular
Sleeve Type	Push to connect	Division	Quick Coupling Division
Seal Material	Nitrile	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Maximum Operating Pressure	300	Coupling Half	Coupler
Minimum Operating Temperature	-40	Application	Pneumatic
Plating Type	na	Maximum Operating Temperature	250
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Body Material	Brass	Hose I.D. (inch)	1/4
Body Size (inch)	1/4	Body Material	BRASS
Connection Thread Size (inch)	na	Thread Style	na
Connection Type	Push-Lok hose barb
