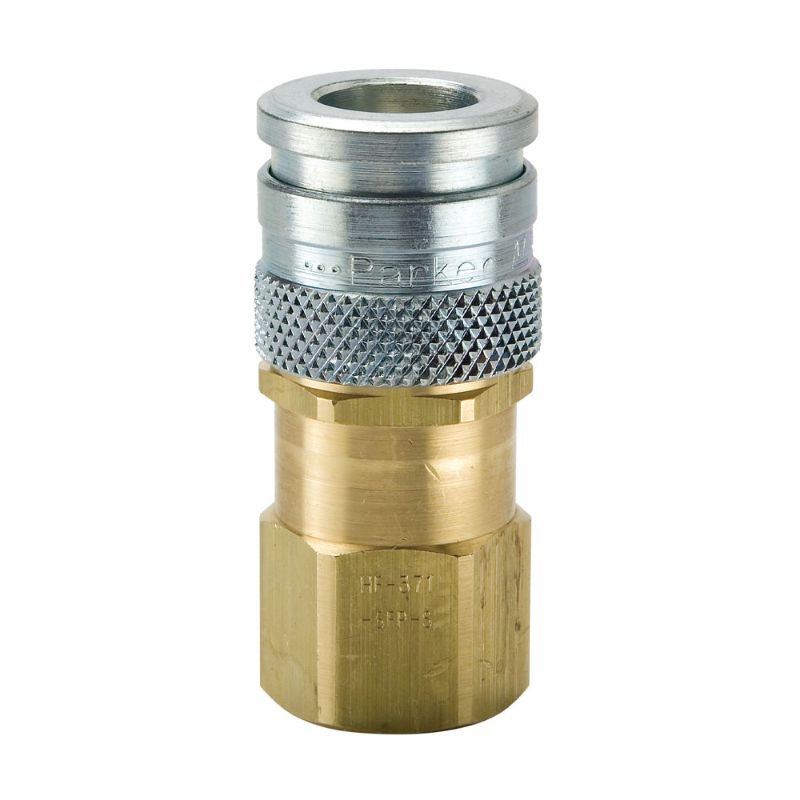

Parker HF-371-6FP-S - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: Parker HF-371-6FP-S - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-371-6FP-S
Price: 18.04 USD
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:

5 In Stock

West Knoxville, TN

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. HF-371-6FP-S

$18.04/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Pneumatic
Plating Type	Zinc with clear trivalent chromate on steel body and sleeve	Minimum Operating Temperature	-40
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Body Material	Brass
Valve Type	Tubular	Maximum Operating Temperature	250
Sleeve Type	Push to connect	Division	Quick Coupling Division
Seal Material	Nitrile	Coupling Half	Coupler
Maximum Operating Pressure	300	Body Material	Steel and brass
Thread Style	Female	Body Size (inch)	3/8
Hose I.D. (inch)	na	Connection Thread Size (inch)	3/8 - 18
Connection Type	NPSF
