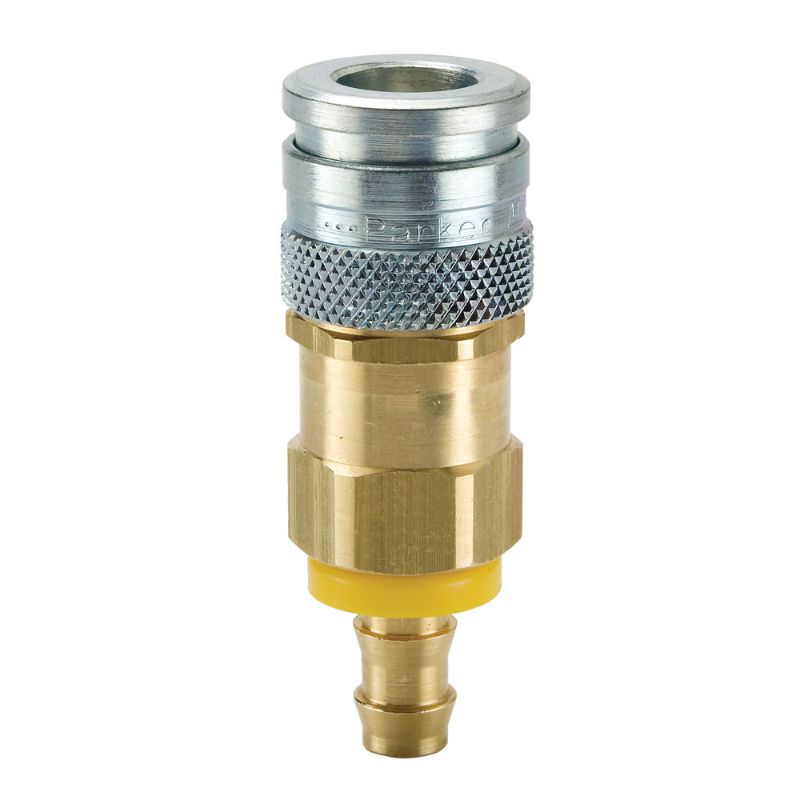

Parker HF-251-6PL-S - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: Parker HF-251-6PL-S - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-251-6PL-S
Price: 27.44 USD
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:

14 In Stock

Norfolk, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. HF-251-6PL-S

$27.44/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Tubular
Maximum Operating Temperature	250	Division	Quick Coupling Division
Sleeve Type	Push to connect	Maximum Operating Pressure	300
Seal Material	Nitrile	Coupling Half	Coupler
Minimum Operating Temperature	-40	Plating Type	Zinc with clear trivalent chromate on steel body and sleeve
Application	Pneumatic	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Body Material	Brass	Body Material	Steel and brass
Hose I.D. (inch)	3/8	Thread Style	na
Body Size (inch)	1/4	Connection Type	Push-Lok hose barb
Connection Thread Size (inch)	na
