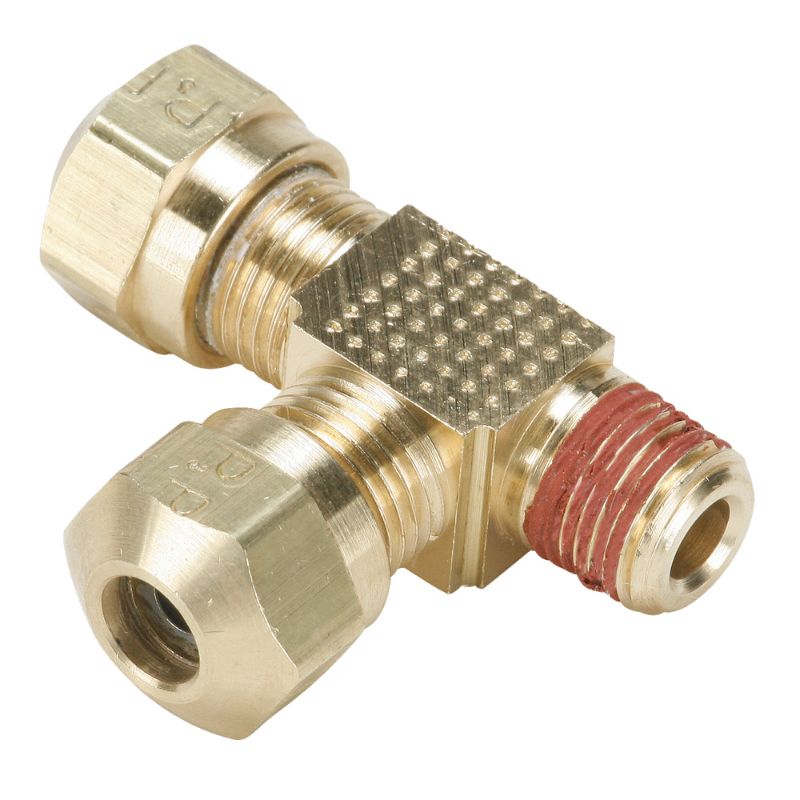

Parker VS271NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS271NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS271NTA-4-4
Price: 36.19 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

5 In Stock

Ashland, VA	4
Jacksonville, FL	1

Partner Available:

86 In Stock

Brand Parker

Part No. VS271NTA-4-4

$36.19

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Maximum Operating Pressure	150 psi	Thread Sealant Material	Vibra-Seal 516
Sleeve Material	Brass	Minimum Operating Temperature	-40 °C
Body Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Application	Air Brake, Accessories
Tube Material	SAE J844 Type A & B Nylon Tubing	Nut Material	Brass
Connection 2 Thread Size (inch)	1/4	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 3 Style	na
Style	Tube to Pipe	Connection 3 Thread Size (inch)	na
Connection 2 Style	Male Pipe	Connection 2 Tube O.D. (inch)	na
Shape	Run Tee
