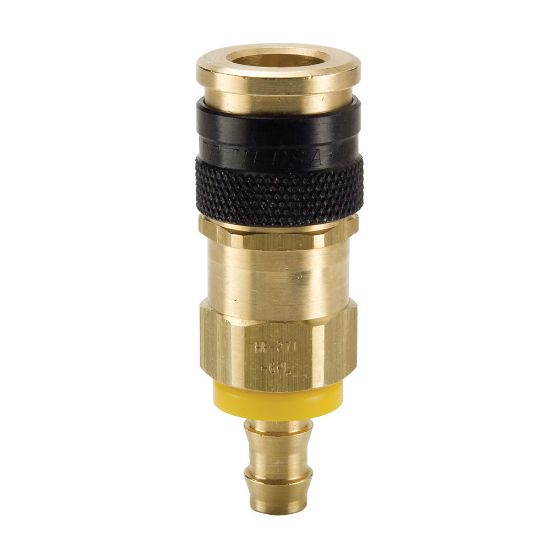

Parker HF-251-6PL - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: Parker HF-251-6PL - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-251-6PL
Price: 18.60 USD
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

118 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. HF-251-6PL

$18.60/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250
Sleeve Type	Push to connect	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Division	Quick Coupling Division
Valve Type	Tubular	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Maximum Operating Pressure	300	Coupling Half	Coupler
Seal Material	Nitrile	Body Material	Brass
Plating Type	na	Application	Pneumatic
Minimum Operating Temperature	-40	Connection Type	Push-Lok hose barb
Body Size (inch)	1/4	Thread Style	na
Body Material	BRASS	Connection Thread Size (inch)	na
Hose I.D. (inch)	3/8
