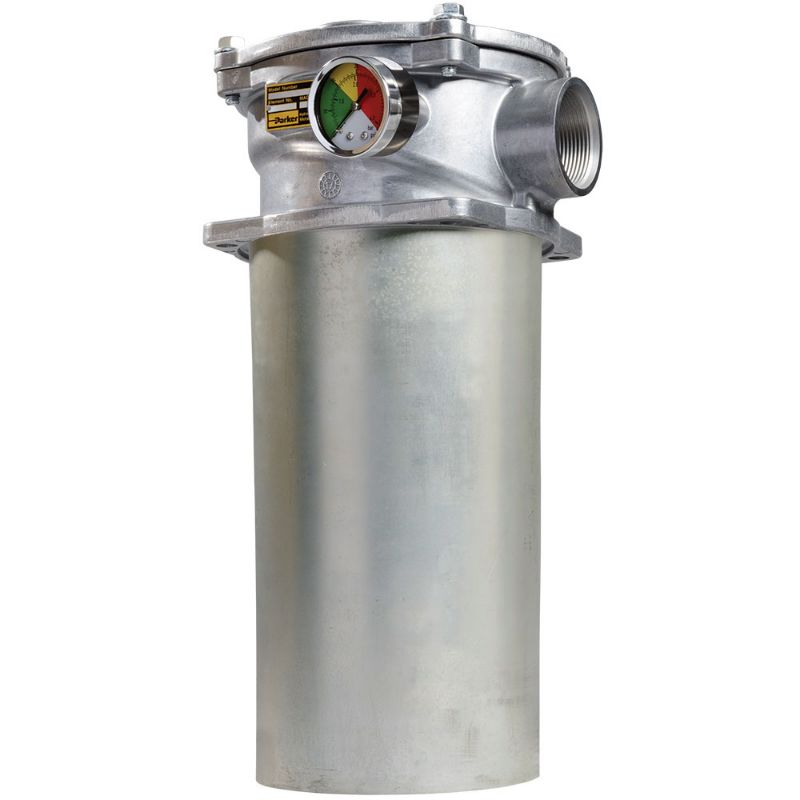

Parker GLF3110QBGIS24D - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3110QBGIS24D

$455.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Tank Mounted
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
Port Type	SAE-24	Housing Material	Cast Aluminum Alloy
Flow Rate	150 Gal/min	Bypass Valve Pressure Rating	35 psi
Seal Material	Nitrile	Weight	7 lb
Compatible Element	945896Q	Filter Element Type	10Q Microglass
Indicator Pressure Setting	28 psi	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Maximum Operating Temperature	225 °F	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	150 psi	Seal Material	Nitrile
Filter Element	10Q Microglass	Port Connection Type	SAE-24
Flow Rate (gpm)	150	Bypass Valve (psi)	35
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
