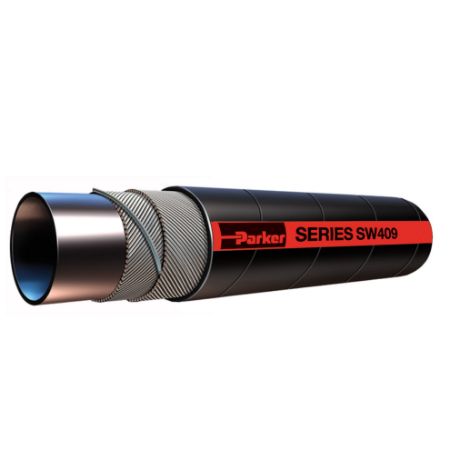

Heavy Duty Sand Recovery/Vacuum Hose, Series SW409

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series SW409 Heavy Duty Sand Recovery/Vacuum Hose provides superior service across multiple high pressure bulk transfer applications. The thick rubber tube provides additional resistance to sand and other severely abrasive materials going through the hose, and dissipates static electrical charge for operator safety. The cover provides resistance to abrasion and weathering for maximum performance.

Markets:
• Construction
• General Industrial
• Surface Mining

Features/Benefits:
• Tube: Tan 1/4” thick natural rubber for superior abrasion resistance to 150°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for crush resistance and kink resistance, full suction capability and a path to conduct a static charge to ground.
• Cover: Black SBR for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.

Applications:
- media
• Abrasive materials
• Debris
• Sand
- usage
• Bulk loading/unloading
• Construction sites
• Highway maintenance
• In-plant transfer
• On-site sand clean-up/recovery

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Design Factor	Cover Material	Maximum Operating Pressure	Application	Weight	Hose Reinforcement Material	Minimum Operating Temperature	Media	Minimum Bend Radius	Length per Package	Vacuum Pressure Rating	Cover Structure	Hose Inner Tube Material	Maximum Operating Temperature	Inside Diameter	Cover Color	Division	Package Type	Outside Diameter	Hose I.D. (inch)
SW409-2000	Quote Required	89 In Stock	$48.44	FT	4:1	Styrene Butadiene Rubber (SBR)	200 psi	Material Handling	1.41 lb	2 Plies of Textile with Dual Wire Helix	-40 °F	Wet Abrasive Powders	152.4 mm	100 ft	737 mm-Hg	Wrapped	Natural Rubber (NR) Static Dissipative	150 °F	2 inch	Black	Hose Products Division	Coil	2.750 inch	2
SW409-3000	Quote Required	Quote Required	$66.07	FT	4:1	Styrene Butadiene Rubber (SBR)	12.1 bar	Material Handling	1.10 kg	2 Plies of Textile with Dual Wire Helix	-40 °C	Wet Abrasive Powders	304.8 mm	100 ft	737 mm-Hg	Wrapped	3/16" Static Dissipative	150 °F	76.2 mm	Black	Hose Products Division	Coil	95.3 mm	3
SW409-4000	Quote Required	32 In Stock	$75.58	FT	4:1	Styrene Butadiene Rubber (SBR)	10.3 bar	Material Handling	1.43 kg	2 Plies of Textile with Dual Wire Helix	-40 °F	Wet Abrasive Powders	406.4 mm	100 ft	737 mm-Hg	Wrapped	Natural Rubber (NR) Static Dissipative	66 °C	4 inch	Black	Hose Products Division	Coil	4.750 inch	4
SW409-5000	Quote Required	Quote Required	TBD		4:1	Styrene Butadiene Rubber (SBR)	100	Material Handling	4.25	2 Plies of Textile with Dual Wire Helix	-40	Dry Abrasive Powders (Debris)	20	100	29	Wrapped	3/16" Static Dissipative	150	5	Black	Hose Products Division	Coil	5.813	5
SW409-6000	Quote Required	Quote Required	TBD		4:1	Styrene Butadiene Rubber (SBR)	100 psi	Material Handling	2.40 kg	2 Plies of Textile with Dual Wire Helix	-40 °C	Dry Abrasive Powders (Debris)	24 inch	100 ft	737 mm-Hg	Wrapped	Black Static Dissipative	150 °F	152.4 mm	Black	Hose Products Division	Coil	173 mm	6
