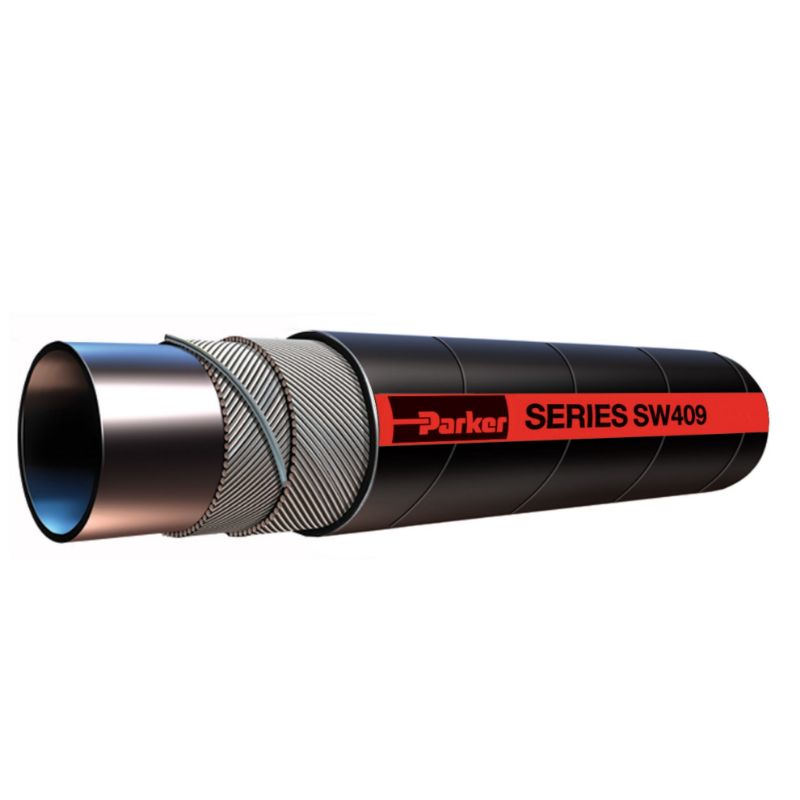

Parker SW409-3000 - Heavy Duty Sand Recovery/Vacuum Hose, Series SW409

Heavy Duty Sand Recovery/Vacuum Hose incorporates a 3/16” thick natural rubber tube and is designed for high pressure transfer of sand and severely abrasive materials in applications to 150°F and 200 psi, Series SW409

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW409-3000

$69.92/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Wet Abrasive Powders
Maximum Operating Temperature	150 °F	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Application	Material Handling
Package Type	Coil	Hose Inner Tube Material	3/16" Static Dissipative
Design Factor	4:1	Weight	1.10 kg
Maximum Operating Pressure	12.1 bar	Length per Package	100 ft
Minimum Bend Radius	304.8 mm	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Cover Material	Styrene Butadiene Rubber (SBR)	Cover Color	Black
Vacuum Pressure Rating	737 mm-Hg	Outside Diameter	95.3 mm
Cover Structure	Wrapped	Inside Diameter	76.2 mm
Hose I.D. (inch)	3
