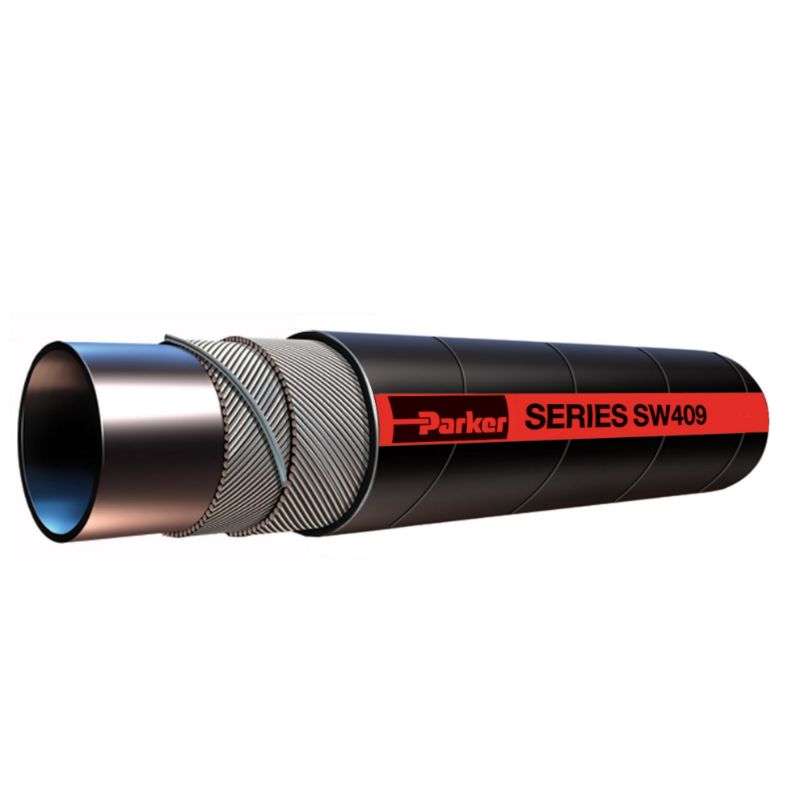

Parker SW409-4000 - Heavy Duty Sand Recovery/Vacuum Hose, Series SW409

Heavy Duty Sand Recovery/Vacuum Hose incorporates a 3/16” thick natural rubber tube and is designed for high pressure transfer of sand and severely abrasive materials in applications to 150°F and 200 psi, Series SW409

Availability:	Quote Required
Partner Available:	32 In Stock

Brand Parker

Part No. SW409-4000

$75.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	1.43 kg
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Division	Hose Products Division	Outside Diameter	4.750 inch
Package Type	Coil	Cover Color	Black
Maximum Operating Temperature	66 °C	Design Factor	4:1
Application	Material Handling	Cover Material	Styrene Butadiene Rubber (SBR)
Maximum Operating Pressure	10.3 bar	Minimum Bend Radius	406.4 mm
Media	Wet Abrasive Powders	Length per Package	100 ft
Inside Diameter	4 inch	Hose Inner Tube Material	Natural Rubber (NR) Static Dissipative
Cover Structure	Wrapped	Vacuum Pressure Rating	737 mm-Hg
Hose I.D. (inch)	4
