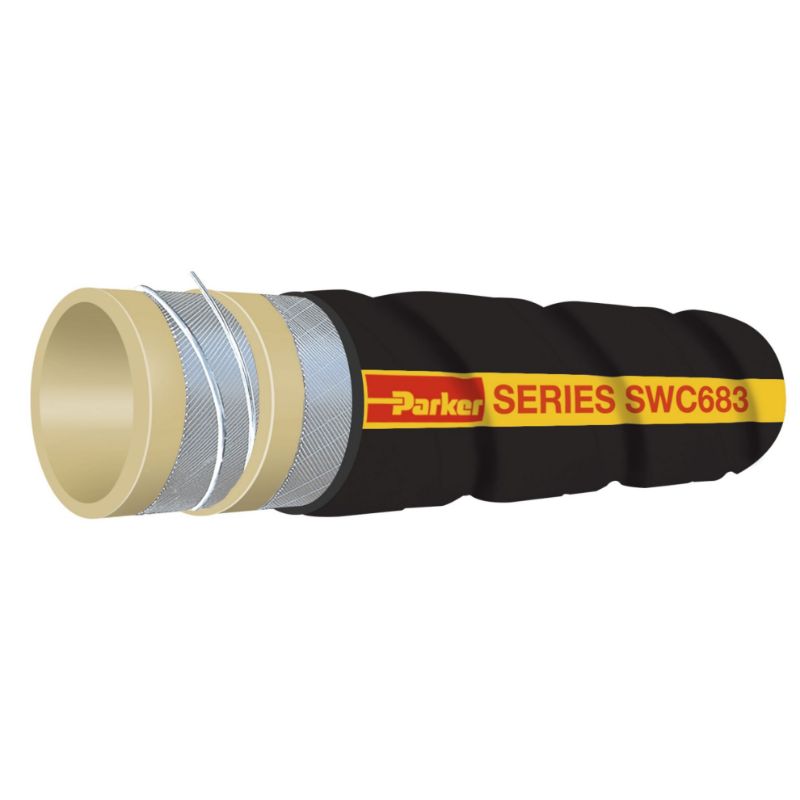

Parker SWC683-1000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	59 In Stock

Brand Parker

Part No. SWC683-1000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	38.1 mm
Maximum Operating Temperature	121 °C	Vacuum Pressure Rating	737 mm-Hg
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Inside Diameter	25.4 mm
Nominal Hose Inside Diameter	25 mm	Division	Hose Products Division
Size	-16	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Hose Inner Tube Material	Tan (MXLPE)	Application	Transportation
Weight	0.49 lb/ft	Compatible Fitting	n/a
Media	Chemicals	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	1.7 MPa	Cover Structure	Corrugated
Minimum Bend Radius	50.8 mm	Color	Black
Hose I.D. (inch)	1
