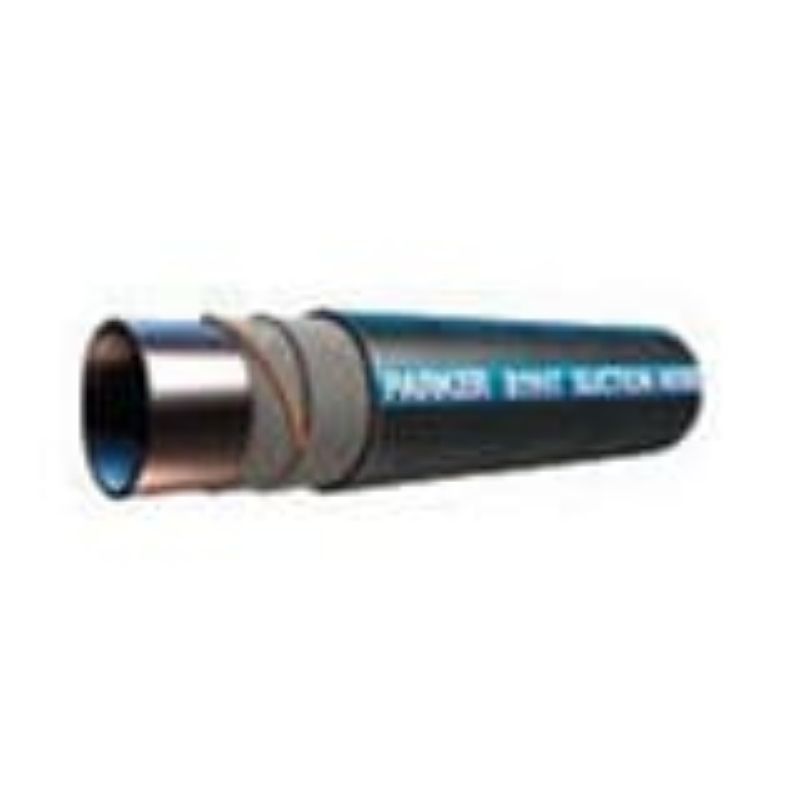

Parker 811HT-32 - High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:	Quote Required
Partner Available:	88 In Stock

Brand Parker

Part No. 811HT-32

$47.41

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Maximum Operating Temperature	125 °C	Design Factor	4:1
Minimum Bend Radius	152 mm	Inside Diameter	2 inch
Hose Cover Type	Standard Cover	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Application	Petroleum Base Hydraulic Fluids
Media	Petroleum Hydraulic Fluids	Cover Material	MSHA Approved
Outside Diameter	2.500 inch	Vacuum Pressure Rating	95 kPa
Specifications Met	MSHA	Nominal Hose Inside Diameter	50 mm
Maximum Operating Pressure	0.7 MPa	Minimum Operating Temperature	-46 °C
Weight	1.26 lb/ft	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Hose I.D. (size)	-32

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
