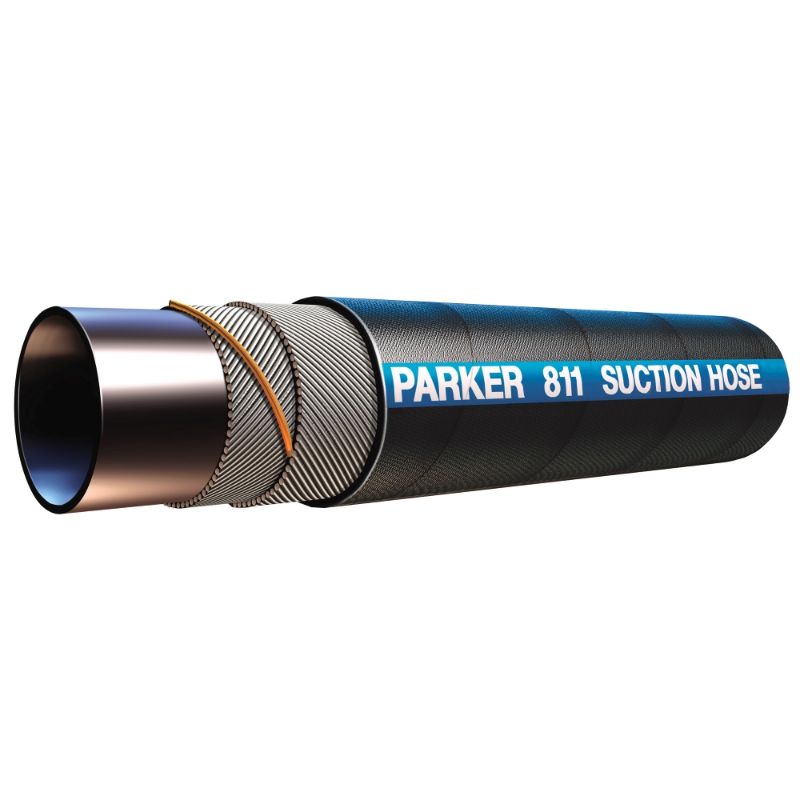

Parker 811-32 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: Parker 811-32 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-32
Price: 40.66 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

AFP Availability:

174 In Stock

Grovetown, GA	67
Jacksonville, FL	57
Richmond, VA	50

Partner Available:

3715 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 811-32

$40.66/each

Qty:

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	212 °F
Hose Cover Type	Standard Cover	Compatible Fitting	43 Series
Media	Petroleum Hydraulic Fluids	Outside Diameter	63.6 mm
Vacuum Pressure Rating	84 kPa	Inside Diameter	2 inch
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix	Nominal Hose Inside Diameter	50 mm
Minimum Bend Radius	152 mm	Cover Material	Synthetic Rubber
Specifications Met	USCG HF	Weight	1.87 kg/m
Maximum Operating Pressure	100 psi (w/ 81/88DB)	Hose Inner Tube Material	Synthetic Rubber
Minimum Operating Temperature	-40 °F	Application	Lubricating Oils
Hose I.D. (size)	-32
