Suction and Return Line Hose 62-300 PSI – 811 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

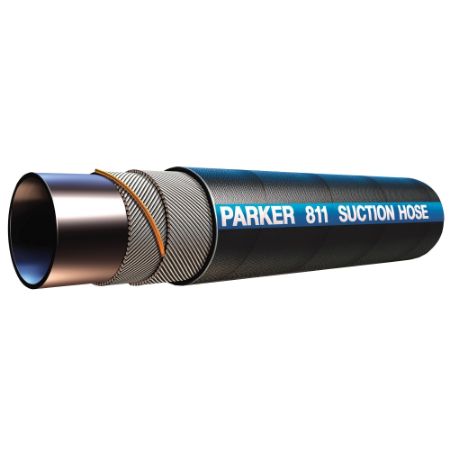

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• RV & Bus

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Railroad

• Utility Equipment

• Personnel Lift Equipment

• Machine Tool

• Oil Field Service

• Waste & Refuse

• Material Handling

• Marine

• Paving & Road Maintenance

• Ground Support Equipment

• Industrial

• Mining

Features/Benefits:

• 62-300 PSI working pressure in different sizes

• Half SAE bend radius for ease of installation and low force to flex

• SAE J517 100R4 / SAE J1942 Performance Specifications

• Oil and weather-resistant synthetic rubber cover

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 81 series fittings (for -12 to -32)

• 88 series fittings (for -12 to -40)

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Minimum Operating Temperature	Cover Material	Nominal Hose Inside Diameter	Application	Maximum Operating Temperature	Hose Cover Type	Hose Inner Tube Material	Media	Compatible Fitting	Outside Diameter	Vacuum Pressure Rating	Inside Diameter	Division	Minimum Bend Radius	Specifications Met	Hose Reinforcement Material	Weight	Maximum Operating Pressure	Hose I.D. (size)
811-12	282 In Stock	5041 In Stock	$14.25/foot	FT	-40 °F	Synthetic Rubber	19 mm	Petroleum Base Hydraulic Fluids	212 °F	Standard Cover	Synthetic Rubber	Petroleum Hydraulic Fluids	43 Series	1.180 inch	25 Inch-Hg	19 mm	Hose Products Division	64 mm	SAE J1943	Multiple Layers of Spiral Fiber with Wire Helix	0.42 lb/ft	300 psi (w/ 81/88DB)	-12
811-16	305 In Stock	5076 In Stock	$17.16/foot	FT	-40 °C	Synthetic Rubber	25 mm	Petroleum Base Hydraulic Fluids	100 °C	Standard Cover	Synthetic Rubber	Petroleum Hydraulic Fluids	88 Series	38 mm	84 kPa	1 inch	Hose Products Division	3 inch	SAE 100R4	Multiple Layers of Spiral Fiber with Wire Helix	0.96 kg/m	17 bar (w/ 81/88DB)	-16
811-20	492 In Stock	4159 In Stock	$24.28/foot	FT	-40 °C	Synthetic Rubber	31 mm	Lubricating Oils	100 °C	Standard Cover	Synthetic Rubber	Lubricants	43 Series	45 mm	25 Inch-Hg	31.8 mm	Hose Products Division	102 mm	SAE 100R4	Multiple Layers of Spiral Fiber with Wire Helix	0.82 lb/ft	50 psi (w/ 88HC)	-20
811-24	107 In Stock	3858 In Stock	$32.44/foot	FT	-40 °F	Synthetic Rubber	38 mm	Petroleum Base Hydraulic Fluids	100 °C	Standard Cover	Synthetic Rubber	Lubricants	88 Series	2.050 inch	84 kPa	1-1/2 inch	Hose Products Division	5 inch	USCG HF	Multiple Layers of Spiral Fiber with Wire Helix	1.04 lb/ft	3 bar (w/ 88HC)	-24
811-32	142 In Stock	3590 In Stock	$40.66/foot	FT	-40 °F	Synthetic Rubber	50 mm	Lubricating Oils	212 °F	Standard Cover	Synthetic Rubber	Petroleum Hydraulic Fluids	43 Series	63.6 mm	84 kPa	2 inch	Hose Products Division	152 mm	USCG HF	Multiple Layers of Spiral Fiber with Wire Helix	1.87 kg/m	100 psi (w/ 81/88DB)	-32
811-40	Quote Required	1021 In Stock	$56.27/foot	FT	-40 °C	Synthetic Rubber	63 mm	Petroleum Base Hydraulic Fluids	212 °F	Standard Cover	Synthetic Rubber	Lubricants	81 Series	3 inch	25 Inch-Hg	2-1/2 inch	Hose Products Division	178 mm	SAE 100R4	Multiple Layers of Spiral Fiber with Wire Helix	2.45 kg/m	4 bar (w/ 88HC)	-40
