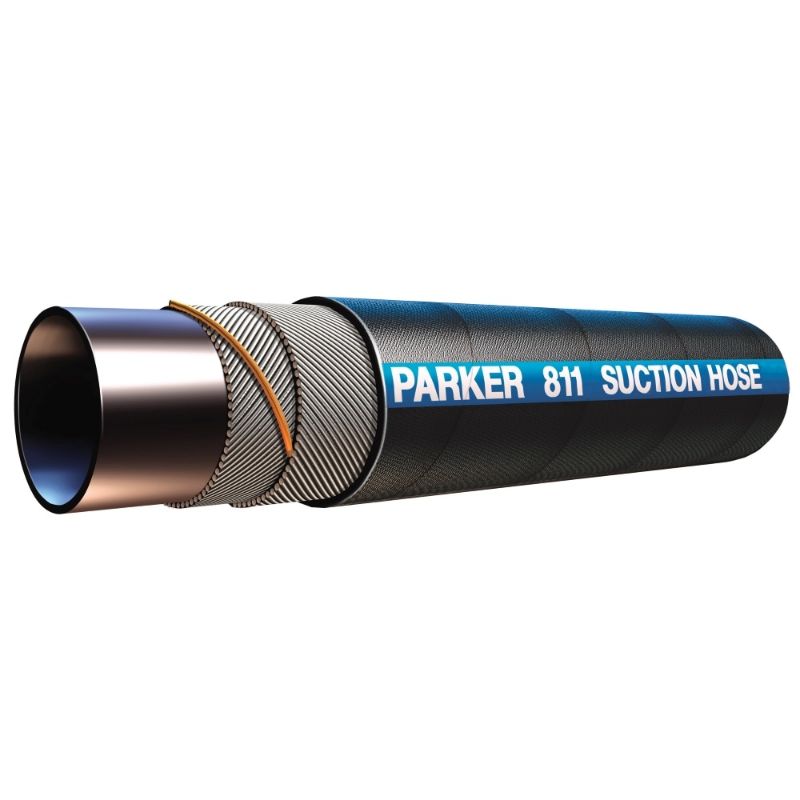

Parker 811-40 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

AFP Availability:	Quote Required
Partner Available:	1021 In Stock

Brand Parker

Part No. 811-40

$56.27/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °C
Application	Petroleum Base Hydraulic Fluids	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	63 mm	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Specifications Met	SAE 100R4	Minimum Bend Radius	178 mm
Media	Lubricants	Compatible Fitting	81 Series
Hose Inner Tube Material	Synthetic Rubber	Division	Hose Products Division
Vacuum Pressure Rating	25 Inch-Hg	Maximum Operating Temperature	212 °F
Hose Cover Type	Standard Cover	Maximum Operating Pressure	4 bar (w/ 88HC)
Weight	2.45 kg/m	Outside Diameter	3 inch
Inside Diameter	2-1/2 inch	Hose I.D. (size)	-40
