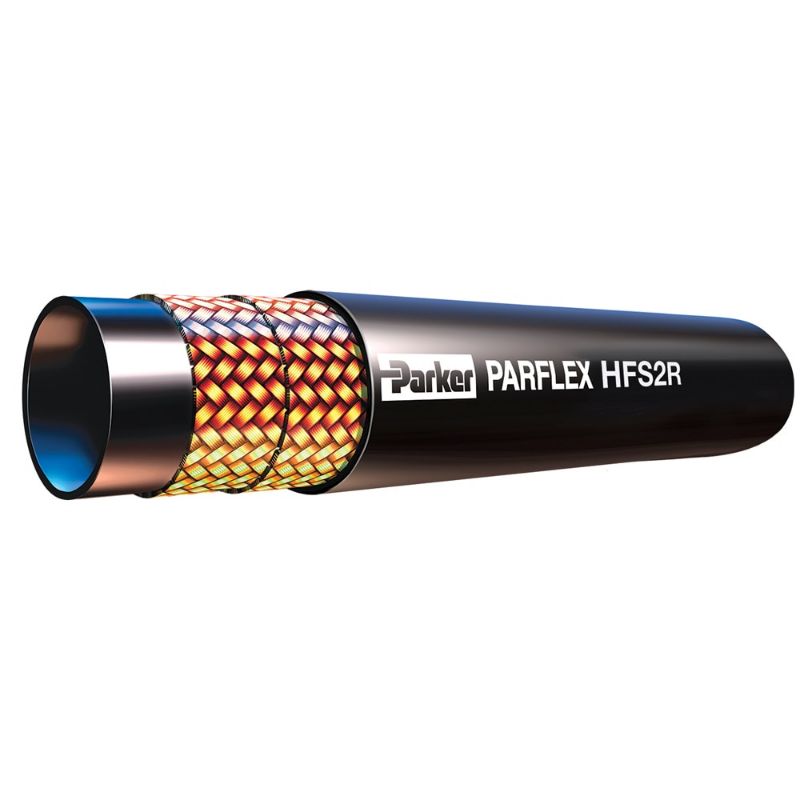

Parker HFS2R06-500 - OBSOLETE: HFS2R Rubber-Covered Hydraulic Hose

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	254 In Stock

Brand Parker

Part No. HFS2R06-500

$5.55

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Compatible Fitting	56 Series
Weight	0.30 lb/ft	Outside Diameter	0.640 inch
Size	-6	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	2-1/2 inch	Hose Reinforcement Material	1 or 2 Braids of High Tensile Steel Wire
Hose Inner Tube Material	Copolyester	Division	Parflex Division
Cover Structure	Smooth	Cover Material	Synthetic Rubber
Maximum Operating Temperature	100 °C	Product Type	Hydraulic Hose
Maximum Operating Pressure	28 MPa	Design Factor	4:1
Inside Diameter	10 mm	Application	Agriculture Equipment
Media	Petroleum Hydraulic Fluids	Specifications Met	MSHA
Hose I.D. (inch)	3/8
