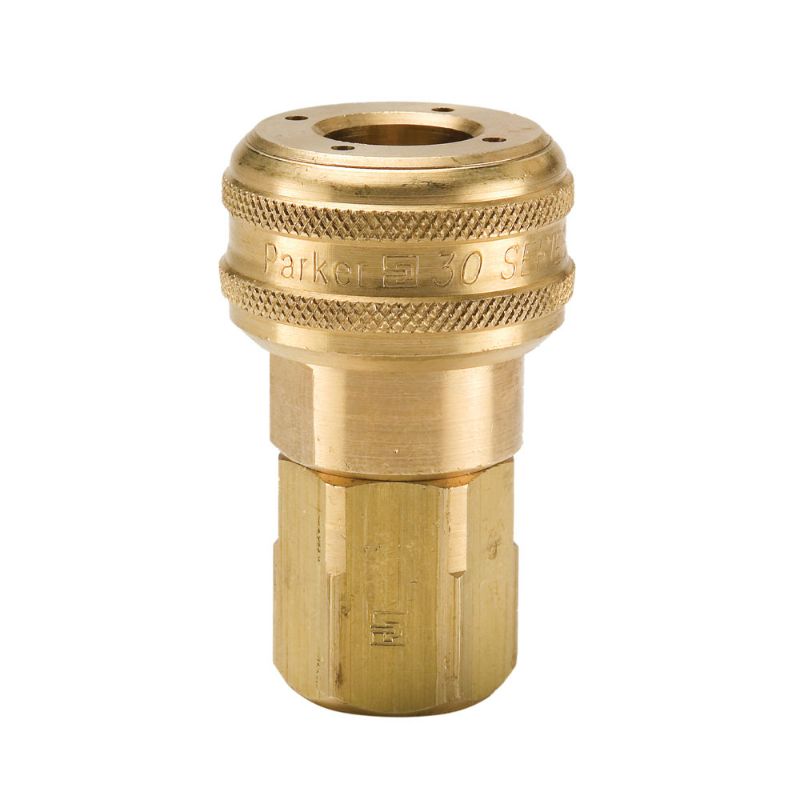

Parker B33 - Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

102 In Stock

North Chesterfield, VA	45
East Knoxville, TN	15
West Knoxville, TN	12
Richmond, VA	6 (Pickup only)
Sumter, SC	6
Jacksonville, FL	4
Johnson City, TN	4 (Pickup only)
Fayetteville, NC	3
Summerville, SC	3
Norfolk, VA	2
Mooresville, NC	2

Partner Available:

783 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B33

$29.35/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Maximum Operating Pressure	300 psi	Dimensional Weight	0.07997601918465227 lb
Valve Type	Tubular	Maximum Operating Temperature	250 °F
Sleeve Type	Push to connect	Division	Quick Coupling Division
Media	Low pressure fluids and compressed air	Lock Type	Pawls
Body Material	Brass	Application	Air
Minimum Operating Temperature	-40 °F	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Seal Material	Nitrile	Body Material	BRASS
Thread Style	Female	Micron Rating	23 Nominal; 45 Absolute
Connection Type	NPTF	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Connection Hose I.D. (inch)	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
