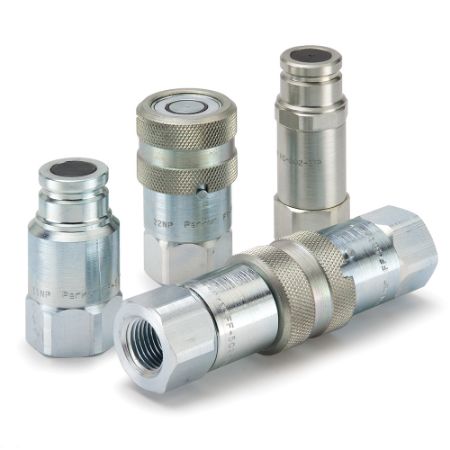

Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
FF Series Hydraulic Couplers (up to 5000 psi), meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF/FC Series Nipples. Parker's FF Series quick connect fittings are double shut off with a non-spill, flat face design to minimize spillage and air inclusion when connecting or disconnecting. Couplers have a sleeve locking mechanism to help prevent accidental disconnection. FF Series quick couplings are available in a range of sizes to be versatile for use in applications with pressures up to 5000 psi.
FF and FC Series Nipples (hydraulic) up to 5000 psi, meet the requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards in the 3/8" size, and connect with FF Series Couplers. FC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.
Technical Characteristics:
• FF Sizes: 1/4” – 1”
• FC (Connect Under Pressure) Sizes: 3/8", 1/2" & 3/4"
• Material: Steel
• Port Ends: Female NPSF, Female NPTF, Female UNF, Female BSPP, Male NPTF, Male UNF
• Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
Markets:
• Industrial
• Construction
• Utility
• Agriculture
Features/Benefits:
• Push-to-connect operation makes connection easy with one hand
• 3/8" size is globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
• Hydraulic flat face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
• Hydraulic Flat Face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
• Sleeve lock guards against accidental disconnection
Applications:
• Hydraulic tools
• Construction equipment attachments
• Industrial hydraulic lines
• Agricultural implements
• Coolant fill and drain lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Division | Maximum Operating Temperature | Plating Type | Body Material | Flow Rate | Dimensional Weight | Application | Valve Type | Seal Material | Product Type | Hex Size | Coupling Half | Body Size (inch) | Connection Thread Size (inch) | Maximum Operating Pressure | Connection Type | Interchange Type | Specifications Met | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FC-372-6FP | Quote Required | 13 In Stock | $163.57/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 6 Gal/min | 0.05341726618705036 lb | Non-Spill | Non-spill | Polyurethane/Nitrile | Push to Connect | 1.062 inch | Male Nipple | 3/8 | 3/8 - 18 | 3000 | Female NPSF | HTMA (ISO 16028) | |||
| FC-372-8FP | Quote Required | 14 In Stock | $231.54/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 6 Gal/min | 0.05341726618705036 lb | Connect Under Pressure | Non-spill | Polyurethane/Nitrile | Push to Connect | 1.062 inch | Male Nipple | 3/8 | 1/2 - 14 | 3000 | Female NPSF | HTMA (ISO 16028) | |||
| FC-502-10FO | 1 Limited Stock | 25 In Stock | $163.36/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 12 Gal/min | 0.12464028776978417 lb | Hydraulics | Non-spill | Polyurethane/Nitrile | Push to Connect | 1.125 inch | Male Nipple | 1/2 | 7/8 - 14 | 3000 | Female UNF | na | |||
| FC-752-12FO | Quote Required | 15 In Stock | $242.49/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 26 Gal/min | 0.7997601918465228 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.50 inch | Male Nipple | 3/4 | 1 1/16 - 12 | 1500 | Female UNF | na | |||
| FC-752-12FP | Quote Required | 6 In Stock | $374.60/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 26 Gal/min | 0.6232014388489209 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.50 inch | Male Nipple | 3/4 | 3/4 - 14 | 1500 | Female NPSF | na | |||
| FEM-371-6FB | Quote Required | 3 In Stock | $100.36/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc Nickel | Steel | 6 Gal/min | Hydraulics | Non-spill | Nitrile | Push to Connect | 30 mm | Female Coupler | 3/8 | 3/8 - 19 | 5000 | Female BSPP | HTMA (ISO 16028) | ISO 16028 | Non-spill | ||
| FEM-371-8FB | Quote Required | $85.19/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc Nickel | Steel | 6 Gal/min | Hydraulics | Non-spill | Nitrile | Push to Connect | 30 mm | Female Coupler | 3/8 | G 1/2 | 5000 | Female BSPP | HTMA (ISO 16028) | ISO 16028 | Non-spill | |||
| FEM-372-6FB | Quote Required | 15 In Stock | $47.43/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc Nickel | Steel | 6 Gal/min | Hydraulics | Non-spill | Nitrile | Push to Connect | 30 mm | Male Nipple | 3/8 | 3/8 - 19 | 5000 | Female BSPP | HTMA (ISO 16028) | ISO 16028 | Non-spill | ||
| FEM-372-8FB | Quote Required | $61.26/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc Nickel | Steel | 6 Gal/min | Hydraulics | Non-spill | Nitrile | Push to Connect | 30 mm | Male Nipple | 3/8 | G1/2 | 5000 | Female BSPP | HTMA (ISO 16028) | Non-spill | ||||
| FF-1001-16FO | Quote Required | 11 In Stock | $418.52/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 50 Gal/min | 0.6232014388489209 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.87 inch | Female Coupler | 1 | 1 5/16 - 12 | 3000 | Female UNF | na | |||
| FF-1001-16FP | 18 In Stock | 11 In Stock | $433.03/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 50 Gal/min | 0.7997601918465228 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.87 inch | Female Coupler | 1 | 1 - 11 1/2 | 3000 | Female NPSF | na | |||
| FF-1002-16FO | Quote Required | 8 In Stock | $271.50/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 50 Gal/min | 0.6232014388489209 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.87 inch | Male Nipple | 1 | 1 5/16 - 12 | 3000 | Female UNF | na | |||
| FF-1002-16FP | 9 In Stock | 28 In Stock | $236.10/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 50 Gal/min | 0.7997601918465228 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1.87 inch | Male Nipple | 1 | 1 - 11 1/2 | 3000 | Female NPSF | na | |||
| FF-251-4FP | 42 In Stock | 143 In Stock | $164.82/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.07997601918465227 lb | Non-Spill | Non-spill | Nitrile | Push to Connect | 1 inch | Female Coupler | 1/4 | 1/4 - 18 | 5000 | Female NPSF | na | |||
| FF-251-4MP | 9 In Stock | 6 In Stock | $177.11/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.05341726618705036 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1 inch | Female Coupler | 1/4 | 1/4 - 18 | 5000 | Male NPTF | na | |||
| FF-251-6FO | 12 In Stock | 32 In Stock | $159.54/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.05341726618705036 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1 inch | Female Coupler | 1/4 | 9/16 - 18 | 5000 | Female UNF | na | |||
| FF-252-4FP | 31 In Stock | 185 In Stock | $81.38/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.02670863309352518 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1 inch | Male Nipple | 1/4 | 1/4 - 18 | 5000 | Female NPSF | na | |||
| FF-252-4MP | Quote Required | 22 In Stock | $94.48/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.02670863309352518 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1 inch | Male Nipple | 1/4 | 1/4 - 18 | 5000 | Male NPTF | na | |||
| FF-252-6FO | 8 In Stock | 75 In Stock | $90.78/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | 0.02670863309352518 lb | Hydraulics | Non-spill | Nitrile | Push to Connect | 1 inch | Male Nipple | 1/4 | 9/16 - 18 | 5000 | Female UNF | na | |||
| FF-252-6MO | 1 Limited Stock | Quote Required | $104.19/each | EA | -40 °F | Quick Coupling Division | 250 °F | Zinc with clear trivalent chromate | Steel | 3 Gal/min | Hydraulic, non-spill | Non-spill | Nitrile | Push to Connect | 1.00 inch | Male Nipple | 1/4 | 9/16-18 | 5000 | Male UNF | na |
