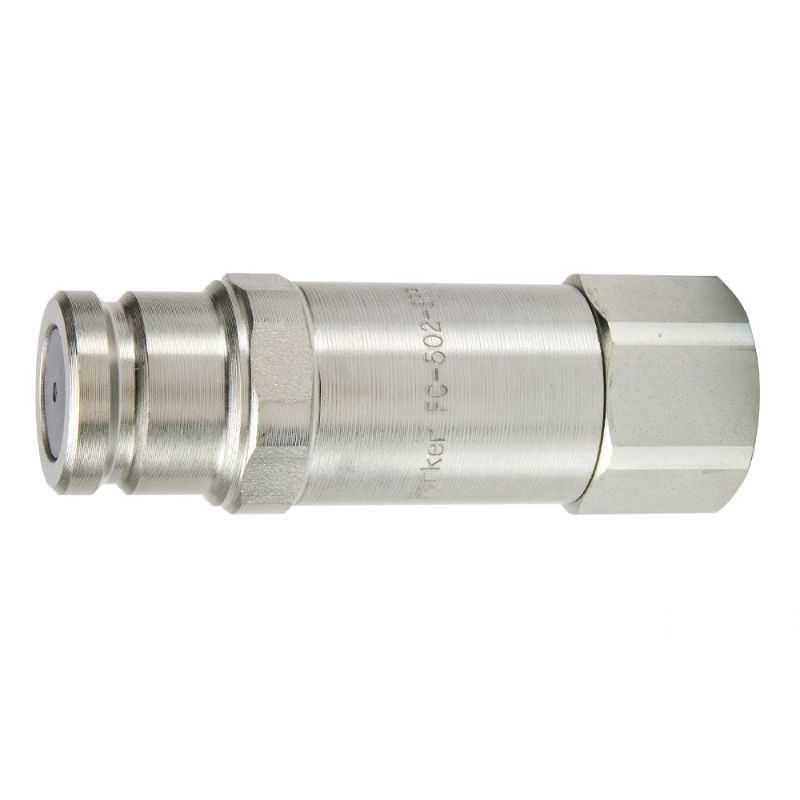

Parker FC-502-10FO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series

Name: Parker FC-502-10FO - Flat Face, HTMA, Hydraulic Quick Couplings - FF and FC Series
SKU: FC-502-10FO
Price: 163.36 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

28 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. FC-502-10FO

$163.36/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Non-spill
Dimensional Weight	0.12464028776978417 lb	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Hex Size	1.125 inch
Body Material	Steel	Minimum Operating Temperature	-40 °F
Application	Hydraulics	Product Type	Push to Connect
Plating Type	Zinc with Clear Trivalent Chromate	Flow Rate	12 Gal/min
Seal Material	Polyurethane/Nitrile	Body Size (inch)	1/2
Coupling Half	Male Nipple	Maximum Operating Pressure	3000
Connection Thread Size (inch)	7/8 - 14	Connection Type	Female UNF
Interchange Type	na
