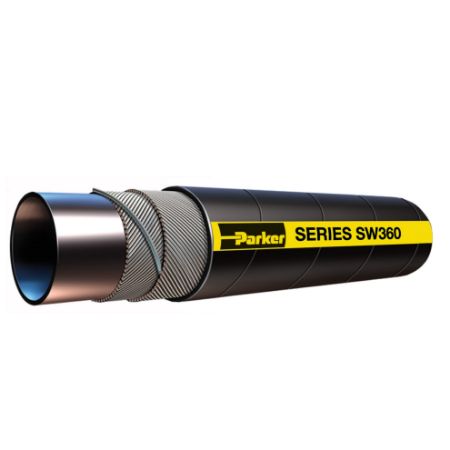

DRAGON BREATH® HOT AIR HOSE, SERIES SW360

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series SW360 Dragon Breath®Hot Air Hose provides excellent medium pressure, heavy duty service for transferring hot air from a compressor to a storage bin/cargo bay to efficiently agitate, mix, disgorge and propel bulk dry material products. The hose provides kink resistance and flexibility, making the hose easy to handle, and the specially formulated rubber compounds keep the hose from drying out, cracking and prematurely failing to provide maximum performance.

Markets:
• Agriculture
• General Industrial
• Transportation

Features/Benefits:
• Tube: Black EPDM for high temperature compatibility to 350°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black EPDM for resistance to abrasion, heat and weathering.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
- media
• Hot air
- usage
• Hot air blower systems
• Bulk loading/unloading
• Bulk delivery/transport trucks
• In-plant transfer

Safety/Technical:
• Design Factor: 4:1

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Design Factor	Maximum Operating Pressure	Application	Minimum Bend Radius	Hose Reinforcement Material	Minimum Operating Temperature	Maximum Operating Temperature	Length per Package	Inside Diameter	Cover Material	Weight	Outside Diameter	Cover Structure	Division	Media	Tube Material	Package Type	Hose Inner Tube Material	Vacuum Pressure Rating	Cover Color	Maximum Working Pressure (psi)	Hose I.D. (inch)
SW360-1500	Quote Required	Quote Required	TBD		4:1	200 psi	Multipurpose	127 mm	Multiple Plies of Textile with Dual Wire Helix	-40 °C	350 °F	100 ft	38.1 mm	Ethylene Propylene Diene Monomer (EPDM)	0.89 lb	2.010 inch	Wrapped	Hose Products Division	Air (Hot Air)	Ethylene Propylene Diene Monomer (EPDM)	Coil	Black	Full	Black	200	1-1/2
SW360-2000	Quote Required	422 In Stock	$30.78	FT	4:1	13.8 bar	Multipurpose	152.4 mm	Multiple Plies of Textile with Dual Wire Helix	-40 °F	350 °F	100 ft	50.8 mm	Ethylene Propylene Diene Monomer (EPDM)	1.08 lb	63.5 mm	Wrapped	Hose Products Division	Air (Hot Air)	Ethylene Propylene Diene Monomer (EPDM)	Coil	Black	Full	Black	200	2
SW360-3000	80 In Stock	724 In Stock	$36.41	FT	4:1	13.8 bar	Air	12 inch	Multiple Plies of Textile with Dual Wire Helix	-40 °F	177 °C	100 ft	76.2 mm	Ethylene Propylene Diene Monomer (EPDM)	0.81 kg	3.563 inch	Wrapped	Hose Products Division	Air (Hot Air)	Ethylene Propylene Diene Monomer (EPDM)	Coil	Ethylene Propylene Diene Monomer (EPDM)	Full	Black	200	3
SW360-4000	Quote Required	424 In Stock	$52.70	FT	4:1	125 psi	Multipurpose	16 inch	Multiple Plies of Textile with Dual Wire Helix	-40 °C	177 °C	100 ft	4 inch	Ethylene Propylene Diene Monomer (EPDM)	1.12 kg	4.563 inch	Wrapped	Hose Products Division	Air (Hot Air)	Ethylene Propylene Diene Monomer (EPDM)	Coil	Black	Full	Black	125	4
SW360-6000	Quote Required	Quote Required	$98.50	FT	4:1	100 psi	Multipurpose	609.6 mm	Multiple Plies of Textile with Dual Wire Helix	-40 °C	350 °F	100 ft	152.4 mm	Ethylene Propylene Diene Monomer (EPDM)	5 lb	6.813 inch	Wrapped	Hose Products Division	Air (Hot Air)	Ethylene Propylene Diene Monomer (EPDM)	Coil	Black	Full	Black	100	6
