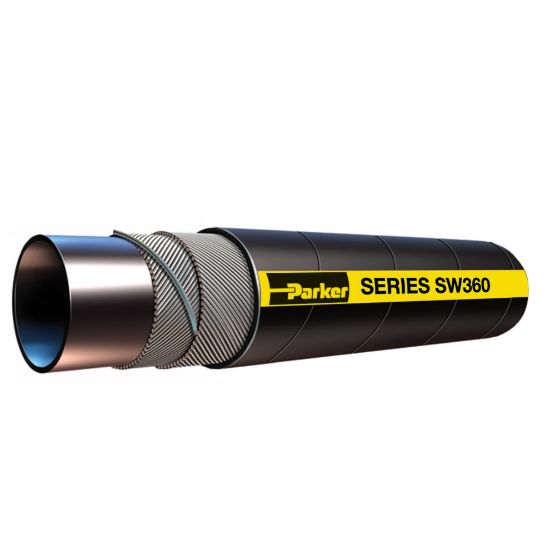

Parker SW360-3000 - DRAGON BREATH® HOT AIR HOSE, SERIES SW360

Name: Parker SW360-3000 - DRAGON BREATH® HOT AIR HOSE, SERIES SW360
SKU: SW360-3000
Price: 38.25 USD
Availability: InStock

Dragon Breath® Hot Air Hose is designed for hot air transfer in dry material loading/unloading applications to 350°F and 200 psi, Series SW360

AFP Availability:

119 In Stock

North Chesterfield, VA	100
Summerville, SC	19

Partner Available:

361 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SW360-3000

$38.25/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.81 kg
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Length per Package	100 ft
Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	12 inch	Vacuum Pressure Rating	Full
Cover Color	Black	Inside Diameter	76.2 mm
Outside Diameter	3.563 inch	Maximum Operating Pressure	13.8 bar
Cover Structure	Wrapped	Media	Air (Hot Air)
Division	Hose Products Division	Maximum Operating Temperature	177 °C
Application	Air	Minimum Operating Temperature	-40 °F
Design Factor	4:1	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Package Type	Coil	Maximum Working Pressure (psi)	200
Hose I.D. (inch)	3
