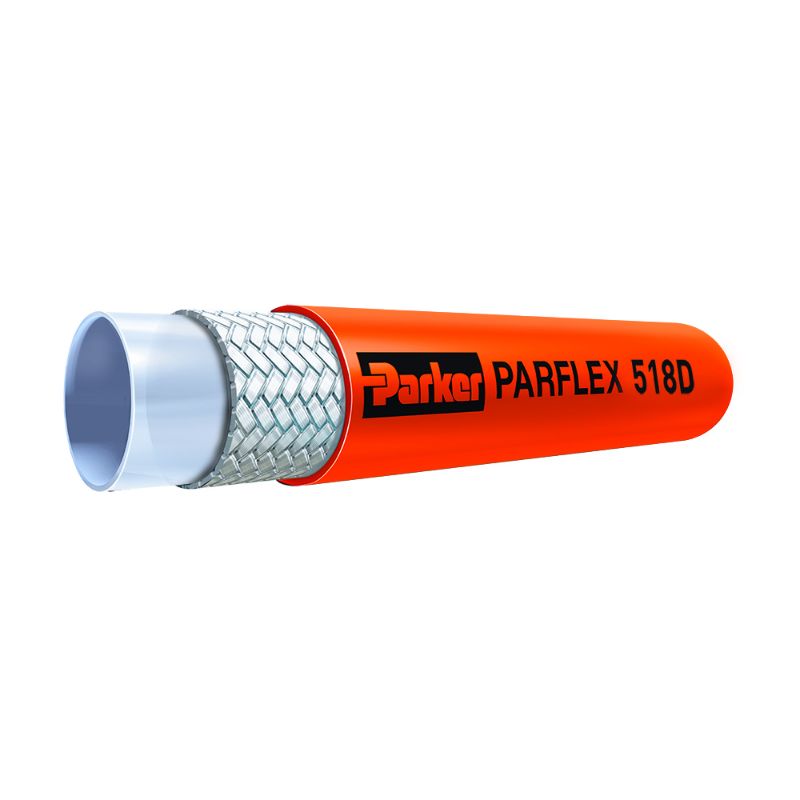

Picture of Parker 518D-12 - Non-Conductive Thermoplastic Hoses - 518D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 518D-12 - Non-Conductive Thermoplastic Hoses - 518D

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.
AFP Availability:
Quote Required
Partner Available:531 In Stock
Brand Parker
Part No. 518D-12
$13.85/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
MediaLubricantsCompatible Fitting56 Series
Size-12Design Factor4:1
Hose Inner Tube MaterialPolyamide (PA)Minimum Operating Temperature-40 °F
ApplicationHydraulicsCover MaterialPolyurethane
Specifications MetANSI A92.2Minimum Bend Radius127 mm
Hose Reinforcement MaterialFiberWeight0.21 lb/ft
Maximum Operating Pressure87 barOutside Diameter1.050 inch
Inside Diameter19 mmDivisionParflex Division
Maximum Operating Temperature100 °CHose I.D. (inch)3/4
Material - Hose Inner TubeNylon
