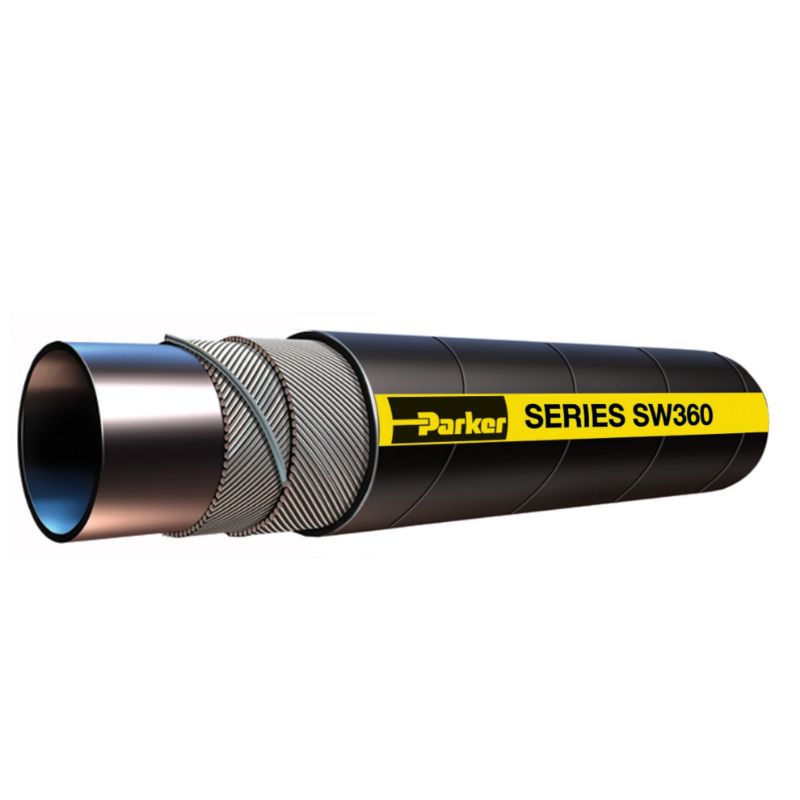

Parker SW360-4000 - DRAGON BREATH® HOT AIR HOSE, SERIES SW360

Dragon Breath® Hot Air Hose is designed for hot air transfer in dry material loading/unloading applications to 350°F and 200 psi, Series SW360

AFP Availability:	Quote Required
Partner Available:	279 In Stock

Brand Parker

Part No. SW360-4000

$55.36/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	177 °C
Division	Hose Products Division	Cover Color	Black
Vacuum Pressure Rating	Full	Design Factor	4:1
Package Type	Coil	Media	Air (Hot Air)
Hose Inner Tube Material	Black	Minimum Bend Radius	16 inch
Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Application	Multipurpose
Minimum Operating Temperature	-40 °C	Inside Diameter	4 inch
Cover Structure	Wrapped	Outside Diameter	4.563 inch
Length per Package	100 ft	Weight	1.12 kg
Maximum Operating Pressure	125 psi	Hose I.D. (inch)	4
Maximum Working Pressure (psi)	125
