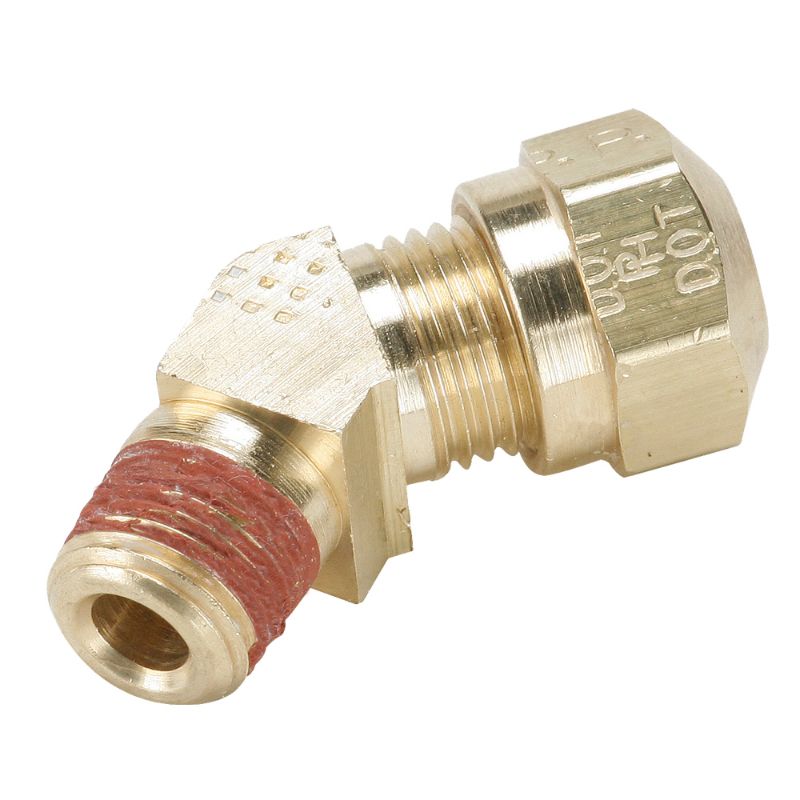

Parker VS279NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS279NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS279NTA-4-4
Price: 27.92 USD
Availability: LimitedAvailability

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

3 In Stock

Richmond, VA	2
Knoxville, TN	1

Partner Available:

1881 In Stock

Brand Parker

Part No. VS279NTA-4-4

$27.92

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	10 bar
Tube Material	Stainless Steel	Application	Air Brake, Accessories
Body Material	Brass	Dimensional Weight	0.27594424460431655 lb
Nut Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °F	Sleeve Material	Brass
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Connection 2 Style	Male Pipe
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Shape	45° Elbow
Connection 2 Thread Size (inch)	1/4	Connection 1 Style	Compression
Style	Tube to Pipe	Connection 3 Style	na
