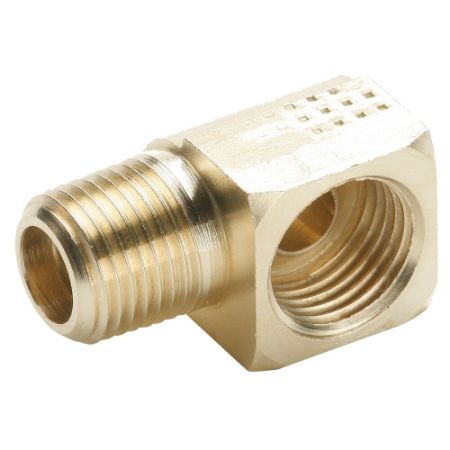

Brass Inverted Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.
Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or [email protected] for additional information.
Read More...Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or [email protected] for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Body Material | Maximum Operating Temperature | Minimum Operating Temperature | Media | Tube Material | Maximum Operating Pressure | Application | Specifications Met | Nut Material | Shape | Connection 2 Thread Size (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Style | Connection 1 Style | Connection 2 Style | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 244IFHD-3 | Quote Required | 130 In Stock | $10.40 | EA | Fluid System Connectors Division | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1900 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Tee | na | 3/16 | 3/16 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-4 | 2 Limited Stock | 46 In Stock | $14.54 | EA | Fluid System Connectors Division | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 96 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Tee | na | 1/4 | 1/4 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-5 | 4 In Stock | 34 In Stock | $16.16 | EA | Fluid System Connectors Division | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 83 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Tee | na | 5/16 | 5/16 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-6 | 3 In Stock | 70 In Stock | $15.62 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 69 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Tee | na | 3/8 | 3/8 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-8 | 3 In Stock | Quote Required | $28.60 | EA | Fluid System Connectors Division | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Tee | na | 1/2 | 1/2 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 245IFHD-4-2 | Quote Required | 18 In Stock | $22.36 | EA | Fluid System Connectors Division | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1400 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Branch Tee | 1/8 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 245IFHD-6-4 | 4 In Stock | 33 In Stock | $28.70 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1000 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | Branch Tee | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IF-6-4 | Quote Required | TBD | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 69 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow Light Duty | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||||
| 249IF-8-6 | Quote Required | TBD | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 750 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow Light Duty | 3/8 | 1/2 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||||
| 249IFHD-10-6 | Quote Required | TBD | Fluid System Connectors Division | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 45 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 3/8 | 5/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||||
| 249IFHD-10-8 | Quote Required | $23.71 | EA | Fluid System Connectors Division | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 45 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/2 | 5/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | |||
| 249IFHD-2-2 | 14 In Stock | 128 In Stock | $19.12 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 2800 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/8 | 1/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-3-2 | 18 In Stock | 79 In Stock | $4.44 | EA | Fluid System Connectors Division | Brass | 121 °C | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 131 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/8 | 3/16 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-4-2 | Quote Required | 252 In Stock | $4.54 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1400 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/8 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | 0.11037769784172662 lb | |
| 249IFHD-4-4 | 5 In Stock | 83 In Stock | $8.17 | EA | Fluid System Connectors Division | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1400 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/4 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-5-4 | Quote Required | TBD | Fluid System Connectors Division | Brass | 250 °F | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 83 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/4 | 5/16 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||||
| 249IFHD-6-2 | Quote Required | TBD | Fluid System Connectors Division | Brass | 250 °F | -53 °C | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 1000 psi | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/8 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||||
| 249IFHD-6-4 | Quote Required | 154 In Stock | $8.58 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 69 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | 0.27594424460431655 lb | |
| 249IFHD-6-6 | 3 In Stock | 156 In Stock | $11.91 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 69 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 3/8 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-8-4 | Quote Required | 3 In Stock | $15.01 | EA | Fluid System Connectors Division | Brass | 121 °C | -65 °F | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | 52 bar | Pumps, Brake Lines | SAE J512 | Brass, Zinc Chromate Steel | 90° Elbow | 1/4 | 1/2 | na | Flare to Pipe | Inverted Flare | Male Pipe |
