*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

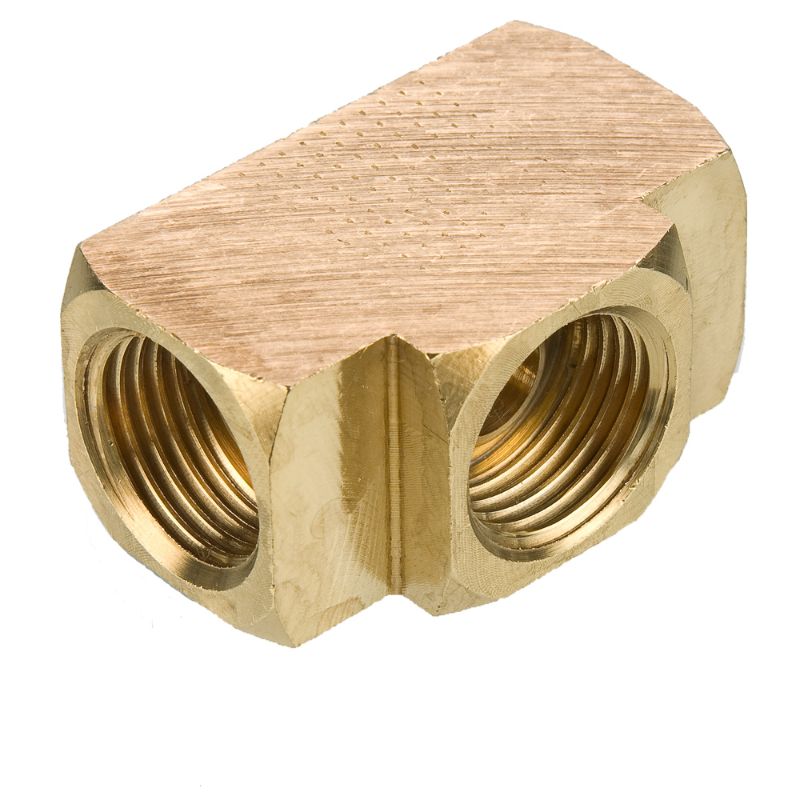

Parker 244IFHD-3 - Brass Inverted Flare Fittings

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

AFP Availability:	Quote Required
Partner Available:	104 In Stock

Brand Parker

Part No. 244IFHD-3

$11.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	1900 psi
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Body Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass, Zinc Chromate Steel
Specifications Met	SAE J512	Minimum Operating Temperature	-53 °C
Application	Pumps, Brake Lines	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 1 Tube O.D. (inch)	3/16
Connection 2 Tube O.D. (inch)	3/16	Style	Flare to Flare
Connection 1 Style	Inverted Flare	Connection 2 Style	Inverted Flare
