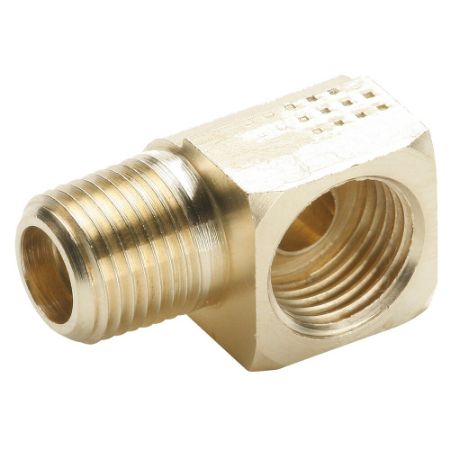

Brass Inverted Flare Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. These fittings are well adapted for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Inverted Flare fittings provide excellent vibration resistance. All fittings meet functional requirements of SAE J512.
Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or [email protected] for additional information.
Read More...Markets:
• Mobile
• Engines
• Marine
• Air conditioning
Features/Benefits:
• All brass construction
• Internal flare for tighter bends
• Steel Zinc Chromate nut available
• U.L. listed for flammable liquids
• Meets functional requirements of SAE J512
• Economical
• Metal-to-metal seal
• Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Applications:
• Hydraulic brake
• Power steering
• Fuel lines
• Transmission cooler lines
• Flammable liquids and gases
Custom configurations and sizes are available upon request. Contact Parker Fluid System Connectors Division at (269) 692-6555 or [email protected] for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Tube Material | Division | Maximum Operating Temperature | Body Material | Media | Nut Material | Specifications Met | Minimum Operating Temperature | Application | Shape | Connection 2 Thread Size (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Style | Connection 1 Style | Connection 2 Style | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 244IFHD-3 | Quote Required | 104 In Stock | $11.08/each | EA | 1900 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | Tee | na | 3/16 | 3/16 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-4 | 3 In Stock | 18 In Stock | $15.49/each | EA | 96 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | Tee | na | 1/4 | 1/4 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-5 | 3 In Stock | 34 In Stock | $16.16/each | EA | 83 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | Tee | na | 5/16 | 5/16 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-6 | 3 In Stock | 36 In Stock | $16.63/each | EA | 69 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | Tee | na | 3/8 | 3/8 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 244IFHD-8 | 3 In Stock | Quote Required | $30.46/each | EA | 750 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | Tee | na | 1/2 | 1/2 | Flare to Flare | Inverted Flare | Inverted Flare | ||
| 245IFHD-4-2 | Quote Required | $23.81/each | EA | 1400 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | Branch Tee | 1/8 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | |||
| 245IFHD-6-4 | 4 In Stock | 20 In Stock | $30.56/each | EA | 1000 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | Branch Tee | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-10-8 | Quote Required | $25.25/each | EA | 45 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | 90° Elbow | 1/2 | 5/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | |||
| 249IFHD-2-2 | 15 In Stock | 112 In Stock | $20.36/each | EA | 2800 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 1/8 | 1/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-3-2 | 18 In Stock | 74 In Stock | $4.72/each | EA | 131 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | 90° Elbow | 1/8 | 3/16 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-4-2 | Quote Required | 255 In Stock | $4.83/each | EA | 1400 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 1/8 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | 0.11037769784172662 lb | |
| 249IFHD-4-4 | 3 In Stock | 43 In Stock | $8.70/each | EA | 1400 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 1/4 | 1/4 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-6-4 | Quote Required | 140 In Stock | $9.13/each | EA | 69 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | 0.27594424460431655 lb | |
| 249IFHD-6-6 | 2 Limited Stock | 135 In Stock | $12.68/each | EA | 69 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 3/8 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-8-4 | Quote Required | 2 Limited Stock | $15.99/each | EA | 52 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 121 °C | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 1/4 | 1/2 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-8-6 | 2 Limited Stock | 19 In Stock | $14.12/each | EA | 52 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | 90° Elbow | 3/8 | 1/2 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 249IFHD-8-8 | 23 In Stock | 33 In Stock | $24.93/each | EA | 750 psi | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | 90° Elbow | 1/2 | 1/2 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 250IFHD-3-2 | 2 Limited Stock | Quote Required | $25.55/each | EA | 131 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -53 °C | Pumps, Brake Lines | 90° Elbow | 1/8 | 3/16 | na | Flare to Female Pipe | Inverted Flare | Female Pipe | ||
| 251IFHD-3-2 | 4 In Stock | Quote Required | $21.39/each | EA | 131 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | Run Tee | 1/8 | 3/16 | na | Flare to Pipe | Inverted Flare | Male Pipe | ||
| 251IFHD-6-4 | 1 Limited Stock | Quote Required | $30.92/each | EA | 69 bar | Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared | Fluid System Connectors Division | 250 °F | Brass | Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon | Brass, Zinc Chromate Steel | SAE J512 | -65 °F | Pumps, Brake Lines | Run Tee | 1/4 | 3/8 | na | Flare to Pipe | Inverted Flare | Male Pipe |
