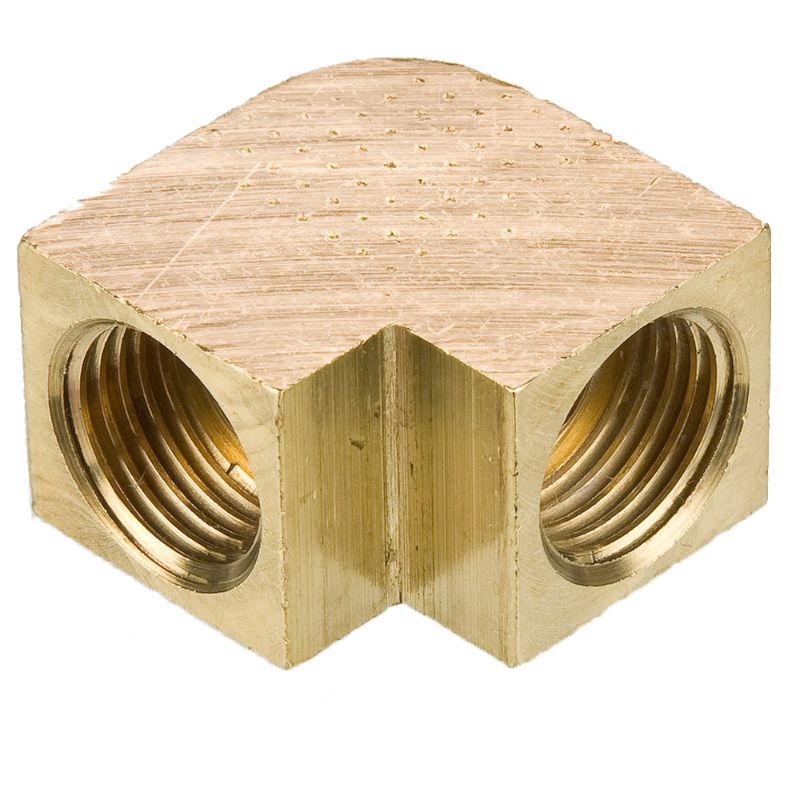

Parker 250IFHD-3-2 - Brass Inverted Flare Fittings

Name: Parker 250IFHD-3-2 - Brass Inverted Flare Fittings
SKU: 250IFHD-3-2
Price: 25.55 USD
Availability: InStock

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

AFP Availability:

2 Limited Stock

West Knoxville, TN

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 250IFHD-3-2

$25.55/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-53 °C
Application	Pumps, Brake Lines	Body Material	Brass
Maximum Operating Pressure	131 bar	Specifications Met	SAE J512
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass, Zinc Chromate Steel	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	3/16	Connection 2 Style	Female Pipe
Connection 1 Style	Inverted Flare	Style	Flare to Female Pipe
