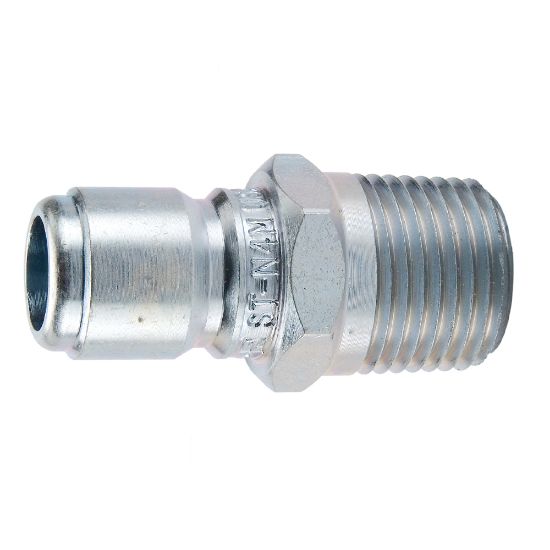

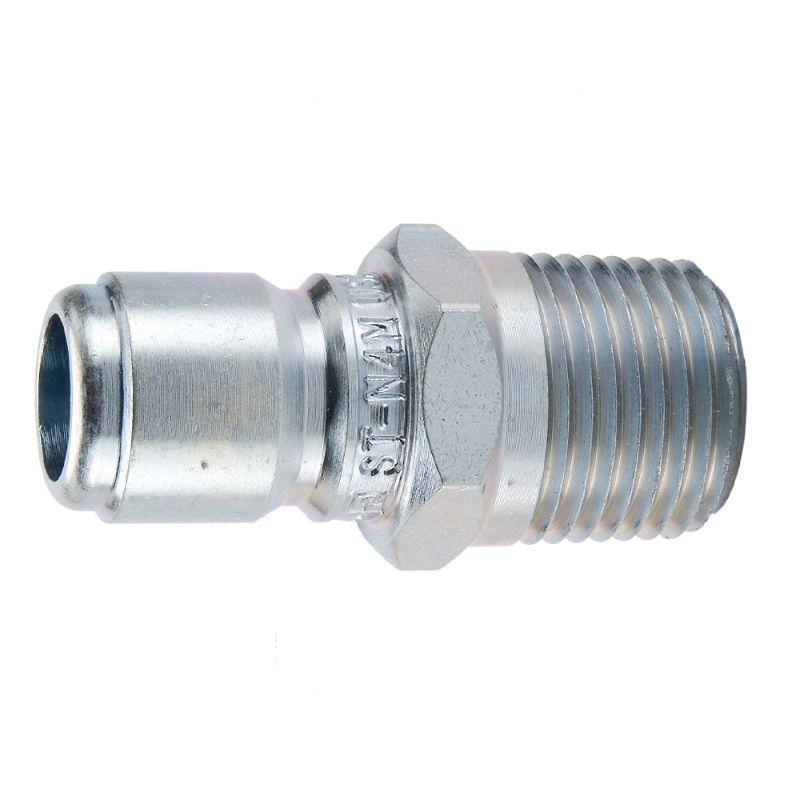

Parker ST-N2M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: Parker ST-N2M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: ST-N2M
Price: 6.98 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

AFP Availability:

29 In Stock

North Chesterfield, VA	25
Jacksonville, FL	4

Partner Available:

295 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. ST-N2M

$6.98/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	n/a
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Dimensional Weight	0.013329336530775381 lb	Valve Type	Unvalved
Hex Size	0.56 inch	Body Material	Steel
Flow Rate	6 Gal/min	Product Type	Push to Connect
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with Clear Trivalent Chromate
Application	High Flow	Body Material	Steel
Connection Type	Male NPTF	Body Size (inch)	1/4
Coupling Half	Male Nipple	Maximum Operating Pressure	5500
Connection Thread Size (inch)	1/4 - 18
