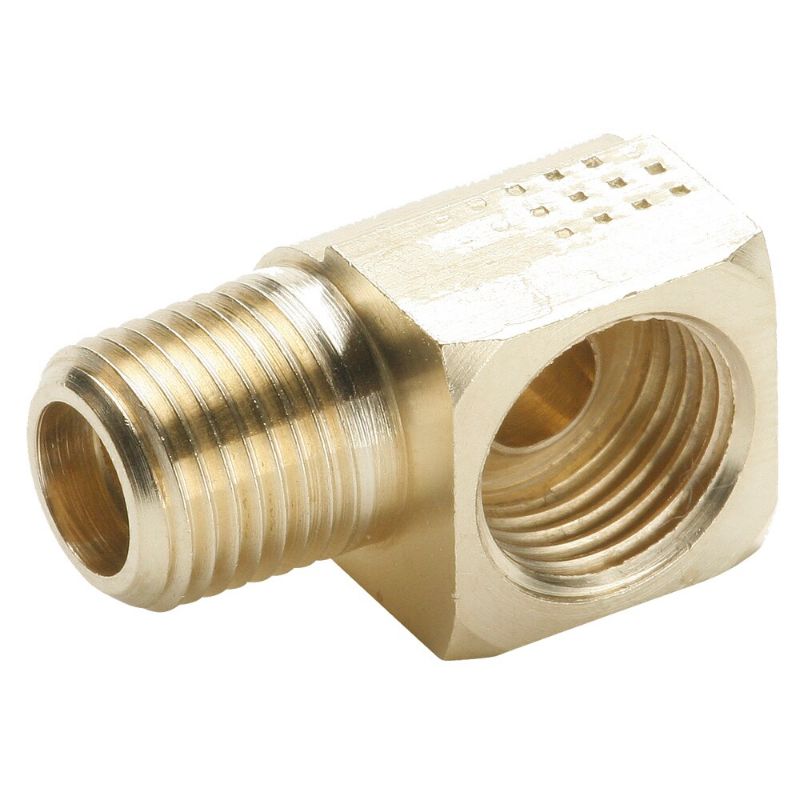

Parker 249IFHD-10-8 - Brass Inverted Flare Fittings

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 249IFHD-10-8

$23.71

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-53 °C	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Application	Pumps, Brake Lines
Specifications Met	SAE J512	Maximum Operating Pressure	45 bar
Nut Material	Brass, Zinc Chromate Steel	Shape	90° Elbow
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	1/2	Connection 2 Style	Male Pipe
Style	Flare to Pipe	Connection 1 Style	Inverted Flare
