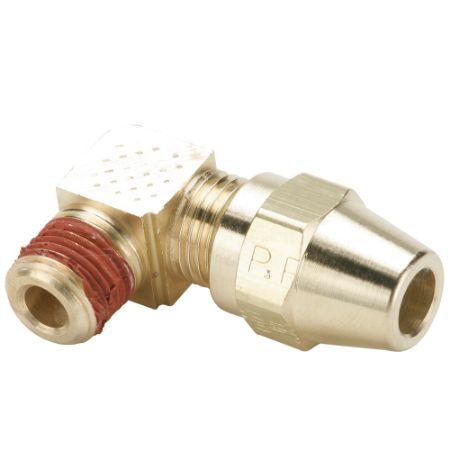

Air Brake D.O.T. compression style fittings, AB
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Being the world's leader in leak free technologies Parker's air brake - AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. AB fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with copper air brake tubing or the following Parker Parflex Division tubing.
• 1120 Nylon Air Brake Tubing (with a tube support)
• 1320 Quantum Elastomeric Air Brake Tubing (with a tube support)
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Meets D.O.T. FMVSS571.106 performance
• Meets functional requirements of SAE J246
• All brass air brake fitting
• Reusable
• Use with copper tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Copper air brake lines
• Coolant lines
• Fuel lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Body Material | Maximum Operating Temperature | Maximum Operating Pressure | Application | Minimum Operating Temperature | Nut Material | Sleeve Material | Tube Material | Specifications Met | Thread Sealant Material | Shape | Connection 2 Thread Size (inch) | Connection 1 Style | Style | Connection 2 Style | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 264AB-4 | 9 In Stock | 19 In Stock | $23.80/each | EA | Fluid System Connectors Division | Brass | 250 °F | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Tee | na | Compression | Tube to Tube | Compression | 1/4 | 1/4 | ||
| 264AB-6 | Quote Required | 7 In Stock | $24.19/each | EA | Fluid System Connectors Division | Brass | 121 °C | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Tee | na | Compression | Tube to Tube | Compression | 3/8 | 3/8 | ||
| 264AB-8 | Quote Required | 3 In Stock | $58.52/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Tee | na | Compression | Tube to Tube | Compression | 1/2 | 1/2 | ||
| 60AB-10 | 81 In Stock | 265 In Stock | $1.65/each | EA | Fluid System Connectors Division | Brass | 121 °C | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Sleeve | na | Compression | Tube | na | 5/8 | na | ||
| 60AB-12 | 5 In Stock | 110 In Stock | $2.31/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Sleeve | na | Compression | Tube | na | 3/4 | na | ||
| 60AB-4 | 144 In Stock | 190 In Stock | $0.65/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Sleeve | na | Compression | Tube | na | 1/4 | na | ||
| 60AB-6 | 101 In Stock | 478 In Stock | $0.65/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Sleeve | na | Compression | Tube | na | 3/8 | na | 0.027594424460431654 lb | |
| 60AB-8 | 150 In Stock | 296 In Stock | $1.11/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Sleeve | na | Compression | Tube | na | 1/2 | na | ||
| 61AB-10 | 37 In Stock | 84 In Stock | $9.92/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Nut | na | Compression | Tube | na | 5/8 | na | ||
| 61AB-12 | Quote Required | 38 In Stock | $13.26/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Nut | na | Compression | Tube | na | 3/4 | na | ||
| 61AB-4 | 15 In Stock | 103 In Stock | $1.68/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Nut | na | Compression | Tube | na | 1/4 | na | ||
| 61AB-6 | 21 In Stock | 137 In Stock | $2.68/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Nut | na | Compression | Tube | na | 3/8 | na | ||
| 61AB-8 | 80 In Stock | 181 In Stock | $5.38/each | EA | Fluid System Connectors Division | Brass | 250 °F | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Nut | na | Compression | Tube | na | 1/2 | na | ||
| 62AB-10 | Quote Required | 2 Limited Stock | $35.00/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Union | na | Compression | Tube to Tube | Compression | 5/8 | 5/8 | ||
| 62AB-4 | Quote Required | 33 In Stock | $11.19/each | EA | Fluid System Connectors Division | Brass | 121 °C | 400 psi | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Union | na | Compression | Tube to Tube | Compression | 1/4 | 1/4 | ||
| 62AB-6 | 7 In Stock | 8 In Stock | $11.46/each | EA | Fluid System Connectors Division | Brass | 250 °F | 27 bar | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Union | na | Compression | Tube to Tube | Compression | 3/8 | 3/8 | ||
| 62AB-8 | 2 Limited Stock | 3 In Stock | $20.57/each | EA | Fluid System Connectors Division | Brass | 250 °F | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Union | na | Compression | Tube to Tube | Compression | 1/2 | 1/2 | ||
| 66AB-10-8 | Quote Required | 5 In Stock | $55.04/each | EA | Fluid System Connectors Division | Brass | 121 °C | 27 bar | Air Brake | -65 °F | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Connector | 1/2 | Compression | Tube to Female Pipe | Female Pipe | 5/8 | na | ||
| 66AB-6-4 | Quote Required | 36 In Stock | $14.66/each | EA | Fluid System Connectors Division | Brass | 121 °C | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Connector | 1/4 | Compression | Tube to Female Pipe | Female Pipe | 3/8 | na | ||
| 66AB-6-6 | Quote Required | 9 In Stock | $17.93/each | EA | Fluid System Connectors Division | Brass | 121 °C | 27 bar | Air Brake | -53 °C | Brass | Brass | Annealed Copper | DOT FMVSS 571.106, SAE J246 | Vibra-Seal 516 | Connector | 3/8 | Compression | Tube to Female Pipe | Female Pipe | 3/8 | na |
